Quikchek Plus vs Mission vs TrueHb Hemoglobin Meter: Features, Test Time, Strips & Comparison
Dr Pramod kumar

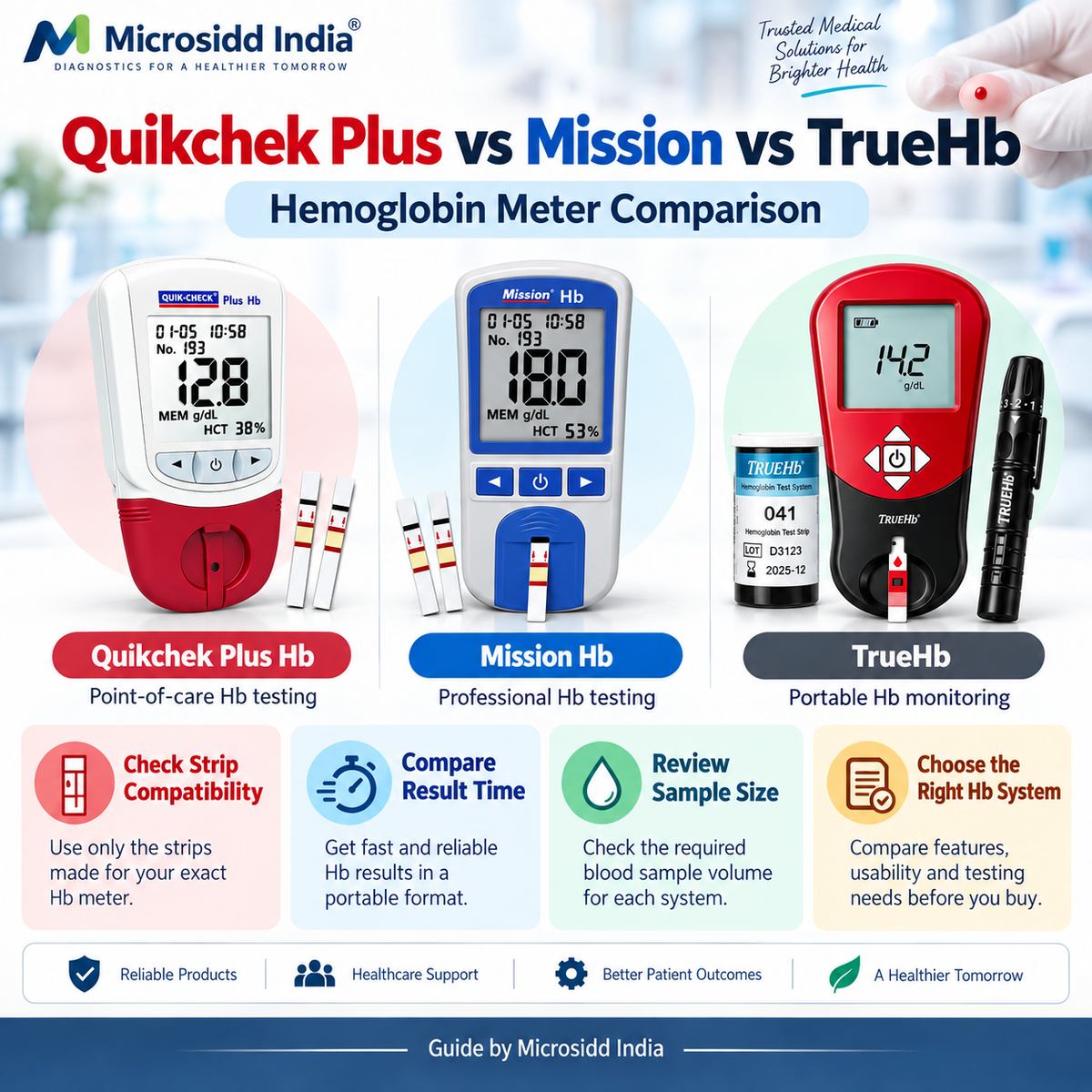

Quikchek Plus, Mission and TrueHb are three digital hemoglobin testing systems available from Microsidd, but they are not identical products.
All three systems provide quantitative hemoglobin (Hb) measurement using a portable meter and compatible single-use Hb test strips. However, they differ in result time, sample requirement, measurement range, hematocrit capability, power system, workflow and compatible consumables.
This comparison is designed to help healthcare professionals, laboratories, clinics, screening programmes and other appropriate users understand those differences before selecting a meter.
For a broader introduction to Hb testing, first read: Hemoglobin Meters & Test Strips Complete Guide →
Or browse all available systems: Hemoglobin Meters & Test Strips Collection →
Quikchek Plus vs Mission vs TrueHb: Quick Comparison
| Feature | Quikchek Plus Hb | Mission Hb | TrueHb |
|---|---|---|---|
| Test parameter | Hemoglobin (Hb) | Hemoglobin (Hb) | Hemoglobin (Hb) |
| Calculated Hct | Yes | Yes | Not listed as a primary current feature |
| Method | Reflectance photometry | Reflectance photometry | Reflectance photometry |
| Approx. blood sample | 10 µL | 10 µL | 10–12 µL |
| Approx. result time | <15 seconds | <15 seconds | Within 60 seconds |
| Hb measurement range | 4.5–25.6 g/dL | 4.0–25.6 g/dL | 0–24 g/dL |
| Calculated Hct range | 13–75% | 13–75% | Not specified as a primary meter output |
| Sample type | Capillary / venous whole blood | Capillary / venous whole blood | Capillary / venous whole blood |
| Memory | Up to 1,000 results | Up to 1,000 results | Up to 1,000 results |
| Data interface | Mini USB | Mini USB | Refer to current model configuration |
| Power | Battery powered | 4 × AAA batteries; optional compatible power input | Rechargeable lithium-polymer battery |
| Compatible strips | Quikchek Plus Hb Strips | Mission Hb Strips | TrueHb Strips |
| Strips interchangeable? | No — match the strip to the exact meter system | ||
Specifications can vary with product generation or pack configuration. Always check the instructions supplied with the exact meter and strips received.
1. Quikchek Plus Hb Meter
The Quikchek Plus Hb Meter from ACON is designed as a rapid digital point-of-care hemoglobin testing system.
It measures Hemoglobin (Hb) and provides a calculated Hematocrit (Hct) value.
Current system information includes:
- approximately 10 µL whole-blood sample,
- results in less than 15 seconds,
- capillary or venous whole blood,
- Hb range approximately 4.5–25.6 g/dL,
- calculated Hct range approximately 13–75%,
- memory for up to 1,000 results,
- date, time and ID storage,
- automatic calibration, and
- Mini USB connectivity.
The meter-only Microsidd listing requires compatible Quikchek Plus Hb Test Strips to be purchased separately.
Shop Quikchek Plus Hb Test Strips 50 →
A meter-and-strip combination is also available:
Quikchek Plus Hb Meter with 50 Strips →
2. Mission Hemoglobin Monitor
The Mission Hemoglobin Monitor from Mission / ACON is also designed for rapid professional point-of-care Hb testing.
Like Quikchek Plus, the current Mission system measures Hemoglobin (Hb) and provides a calculated Hematocrit (Hct) value.
Current system specifications include:
- approximately 10 µL whole-blood sample,
- results in less than 15 seconds,
- capillary and venous whole blood,
- Hb range approximately 4.0–25.6 g/dL,
- calculated Hct range approximately 13–75%,
- memory for up to 1,000 results,
- date, time and ID storage,
- automatic calibration,
- Mini USB interface, and
- battery-powered portable operation.
An important commercial difference is that the current Microsidd Mission starter configuration includes 10 compatible Mission Hb Test Strips with the meter.
Shop Mission Hemoglobin Monitor with 10 Strips →
Replacement strips:
Shop Mission Hemoglobin Test Strips 50 →
A larger meter-and-strip combo is also available:
Shop Mission Hb Monitor Combo →
3. TrueHb Hemometer
The TrueHb Hemoglobin Meter / Hemometer from Wrig Nanosystems is another portable digital system for quantitative Hb measurement.
It uses reflectance photometry with compatible TrueHb test strips and is designed for testing appropriately collected capillary or venous whole blood.
Current TrueHb system information includes:
- approximately 10–12 µL whole-blood sample,
- Hb result within approximately 60 seconds,
- Hb measurement range approximately 0–24 g/dL,
- capillary and venous whole blood,
- memory for up to 1,000 results,
- rechargeable lithium-polymer battery, and
- portable digital operation.
Unlike the Quikchek Plus and Mission systems, calculated Hct is not currently presented as a primary TrueHb meter output in the Microsidd product specifications.
Replacement strips:
Quikchek Plus vs Mission: What Is the Difference?
Quikchek Plus and Mission are the closest two systems in this comparison. Both are ACON platforms designed for rapid professional Hb testing and share many core specifications.
| Feature | Quikchek Plus | Mission Hb |
|---|---|---|
| Hb result | Yes | Yes |
| Calculated Hct | Yes | Yes |
| Sample | Approx. 10 µL | Approx. 10 µL |
| Result time | <15 sec | <15 sec |
| Hb range | Approx. 4.5–25.6 g/dL | Approx. 4.0–25.6 g/dL |
| Memory | Up to 1,000 | Up to 1,000 |
| Current Microsidd meter pack | Meter listing without Hb strips | Meter + 10 Hb strips starter configuration |
| Strip system | Quikchek Plus Hb strips | Mission Hb strips |
Despite their technical similarities, their strips should not be assumed to be interchangeable.
Quikchek Plus vs TrueHb
The most noticeable practical difference is testing workflow.
Quikchek Plus is positioned as a rapid professional point-of-care system, providing results in less than approximately 15 seconds and calculated Hct in addition to Hb.
TrueHb takes up to approximately 60 seconds according to the current product specification and focuses on portable Hb measurement without calculated Hct being presented as a primary current feature.
| Feature | Quikchek Plus | TrueHb |
|---|---|---|
| Sample | Approx. 10 µL | Approx. 10–12 µL |
| Result time | <15 sec | Within 60 sec |
| Calculated Hct | Yes | Not listed as primary output |
| Memory | Up to 1,000 | Up to 1,000 |
| Power | Battery-powered | Rechargeable battery |
Mission vs TrueHb
Mission is structured around a fast professional point-of-care workflow, whereas TrueHb provides a portable Hb measurement platform with a rechargeable power system.
| Feature | Mission Hb | TrueHb |
|---|---|---|
| Sample | Approx. 10 µL | Approx. 10–12 µL |
| Result time | <15 sec | Within 60 sec |
| Calculated Hct | Yes | Not listed as primary output |
| Power | AAA batteries / compatible power input | Rechargeable lithium-polymer battery |
| Current Microsidd starter pack | Includes 10 Hb strips | Check exact selected listing for strip quantity |
Which Meter Gives the Fastest Hb Result?
Based on the current system specifications:
- Quikchek Plus: less than approximately 15 seconds
- Mission Hb: less than approximately 15 seconds
- TrueHb: within approximately 60 seconds
For environments where rapid throughput is important, test time may therefore be a significant comparison factor.
However, result speed should be considered together with compatible-strip availability, workflow and other requirements.
Which Hb Meter Uses the Smallest Blood Sample?
Quikchek Plus and Mission currently specify approximately 10 µL of whole blood.
TrueHb currently specifies approximately 10–12 µL.
The practical difference is relatively small, but the exact required specimen should always be collected according to the instructions for the particular meter.
Which Meters Provide Hematocrit?
Both:
- Quikchek Plus, and
- Mission Hb
provide a calculated hematocrit value alongside Hb according to their current system specifications.
The currently listed TrueHb system is primarily presented as a quantitative hemoglobin meter rather than an Hb + calculated Hct platform.
Which Hemoglobin Meter Has the Largest Memory?
All three currently list memory capacity of up to approximately 1,000 results.
Quikchek Plus and Mission additionally list date, time and ID information as part of their stored testing records.
Power Supply Differences
Power configuration can matter in field or mobile testing.
Quikchek Plus
Portable battery-powered operation.
Mission Hb
Uses four AAA batteries, with compatible external power support according to the current system specification.
TrueHb
Uses a rechargeable 3.7 V lithium-polymer battery.
A rechargeable system can be convenient in some mobile workflows, while replaceable batteries may be useful where immediate battery replacement is preferred.
Operating Temperature Differences
| Meter | Current Listed Operating Temperature |
|---|---|
| Quikchek Plus | Approx. 10–40°C |
| Mission Hb | Approx. 10–40°C |
| TrueHb | Approx. 5–55°C |
Operating range may be relevant for field programmes or mobile screening, but strip-storage requirements must also be checked separately.
Compatible Test Strips: The Most Important Difference
Although all three devices measure hemoglobin, their test strips are system-specific.
| Meter | Use These Strips |
|---|---|
| Quikchek Plus | Quikchek Plus Hb Test Strips |
| Mission Hb | Mission Hemoglobin Test Strips |
| TrueHb | TrueHb Hemoglobin Test Strips |
Do not select Hb strips by appearance or test parameter alone.
Always match the strip to the exact meter model.
Can Quikchek Plus Strips Be Used in Mission Hb?
Do not assume compatibility.
Use Quikchek Plus Hb strips with Quikchek Plus and Mission Hb strips with the compatible Mission system.
This rule should be followed even though both systems are associated with ACON and share several technical characteristics.
Can Mission Hb Strips Be Used in TrueHb?
No substitution should be made.
TrueHb should be used with its specified TrueHb Hemoglobin Test Strips.
Can TrueHb Strips Be Used with Quikchek Plus?
No.
Quikchek Plus uses its specified Quikchek Plus Hb testing system.
Which Hb Meter Is Better for Clinics and Point-of-Care Testing?
For a professional workflow where rapid results and calculated hematocrit are important, both Quikchek Plus and Mission provide relevant features to compare.
Both offer:
- less than approximately 15-second results,
- approximately 10 µL sample requirement,
- Hb + calculated Hct,
- capillary and venous whole-blood support, and
- memory for approximately 1,000 results.
The final system selection can then depend on strip availability, pack configuration, consumable cost and workflow preference.
Which Hb Meter Is Suitable for Portable Testing?
All three meters are portable.
TrueHb is particularly differentiated by its rechargeable battery and broader currently listed operating temperature range.
Quikchek Plus and Mission may be more attractive where rapid professional point-of-care throughput and calculated Hct are important.
Which Hb Meter Should You Choose?
| If Your Priority Is... | Systems Worth Comparing |
|---|---|
| Very rapid Hb result | Quikchek Plus / Mission |
| Hb + calculated Hct | Quikchek Plus / Mission |
| 10 µL sample requirement | Quikchek Plus / Mission |
| Rechargeable meter | TrueHb |
| Broad listed meter operating temperature | TrueHb |
| Starter meter supplied with strips | Current Mission meter + 10-strip pack |
| Existing meter already owned | Continue with the exact compatible strip platform |
| Repeat / high-volume testing | Compare ongoing strip cost and availability before deciding |
There is no single specification that makes one meter appropriate for every workflow. Evaluate the complete meter + strip ecosystem.
Meter Price vs Test Strip Cost
The initial meter price is only one part of the long-term cost of an Hb testing system.
For repeat testing, consider:
- price per refill strip pack,
- number of strips per pack,
- expected number of tests,
- expiry and after-opening requirements,
- strip availability, and
- possible wastage.
A lower-priced meter may not necessarily result in the lowest long-term testing cost if its consumables are more expensive or difficult to obtain.
Meter + Strip Combos vs Buying Separately
A combo can be convenient when purchasing a new system because the compatible consumables are supplied together.
Microsidd currently offers meter-and-strip configurations for these systems, including:
Quikchek Plus Hb Meter with 50 Strips →
Mission Hb Meter with 10 Strips →
Mission Hb Meter Larger Strip Combo →
When purchasing a combo, always confirm the exact strip quantity shown on the current product listing.
What If You Already Own an Hb Meter?
If you already own a functioning meter, you normally do not need another meter simply to obtain replacement test strips.
First identify the exact model printed on the device, then order its compatible strip family:
- Quikchek Plus → Quikchek Plus Hb Strips
- Mission Hb → Mission Hb Strips
- TrueHb → TrueHb Strips
This is particularly important because Hb strips may look similar while using different meter calibration and reagent systems.
Hb Meter vs Glucometer
Do not confuse an Hb meter with a blood glucose meter.
| Device | Measures | Typical Unit |
|---|---|---|
| Hemoglobin meter | Hemoglobin concentration | g/dL |
| Glucometer | Blood glucose | mg/dL or mmol/L |
Hb and glucose test strips are not interchangeable.
Hb Meter vs HbA1c Monitor
Likewise, an Hb meter and an HbA1c analyser perform different tests.
A standard digital Hb meter measures hemoglobin concentration, whereas an HbA1c analyser measures glycated hemoglobin for assessment of longer-term glucose exposure.
HbA1c products should therefore be evaluated separately from this comparison.
Model-Specific Complete Guides
For deeper information about each system:
- Quikchek Plus Hb Meter & Test Strips Complete Guide
- Mission Hemoglobin Monitor & Test Strips Complete Guide
- TrueHb Hemometer & Test Strips Complete Guide
Frequently Asked Questions
Which is faster: Quikchek Plus, Mission or TrueHb?
Quikchek Plus and Mission currently provide results in less than approximately 15 seconds. TrueHb provides a result within approximately 60 seconds according to its current product specification.
Which Hb meter needs the least blood?
Quikchek Plus and Mission currently specify approximately 10 µL of whole blood, while TrueHb specifies approximately 10–12 µL.
Which meters provide calculated hematocrit?
Quikchek Plus and Mission provide calculated Hct according to their current system specifications.
Which meter has the largest memory?
All three currently specify storage for up to approximately 1,000 results.
Which meter is rechargeable?
The current TrueHb system uses a rechargeable lithium-polymer battery.
Can Quikchek Plus strips work in Mission?
Do not substitute them. Use the strip system specified for the exact meter.
Can Mission Hb strips work in TrueHb?
No substitution should be made. TrueHb uses its specified TrueHb test strips.
Are these meters glucometers?
No. These devices measure hemoglobin rather than blood glucose.
Do any of these meters measure HbA1c?
No. Hemoglobin concentration testing and HbA1c testing are separate diagnostic measurements.
Which system is designed for rapid professional point-of-care testing?
Quikchek Plus and Mission are currently positioned as rapid point-of-care Hb systems with sub-15-second result times and calculated Hct capability.
Which meter should I choose if I already have strips?
Use the meter explicitly compatible with those exact strips. Never purchase a different meter based only on the fact that both products measure hemoglobin.
What should I compare before buying?
Compare compatible-strip availability, ongoing test-strip cost, result time, sample volume, Hb range, Hct capability, memory, power source, intended testing environment and current pack contents.
Shop Hemoglobin Meters & Test Strips
View all three systems and their compatible consumables:
Shop Hemoglobin Meters & Test Strips →
Customers in Bengaluru can also find Microsidd India at: Microsidd India – RT Nagar, Bengaluru →
Compatibility notice: Quikchek Plus, Mission and TrueHb are different hemoglobin-testing platforms. Always verify the exact meter model, compatible strip system, pack size, expiry, sample requirement and product specifications before ordering.
Medical information notice: This comparison explains product and testing-system differences. It does not diagnose anemia, determine the cause of an abnormal Hb result, recommend a testing frequency or replace the manufacturer's instructions or professional clinical interpretation.
