Quikchek  Plus HB Meter Strips

Quikchek  Plus HB Meter Hb Digital Hemoglobin Testing System

This is a digital meter for testing Hemoglobin within 15 seconds with just 10 micro liter of Blood Sample either Venous or, Capillary. It is Quick, Reliable, Portable , convinient and Easy to use at bedside of Patients as Point of Care Product

The Salient Features are:Quikchek Plus Hb accurately detects both Hb and Hct levels

Quick Hb and Hct results within 15 seconds
Simply insert Strips, apply Blood specimen and read results
Auto Calibration for added convenience
No specimen preparation required
Low Maintenance and quick clean up
Accurate Precise result equivalent to Automatic Hematology Analyser
Only a single drop of fingertip Blood 10 ul Sample volume required
Wide Hb measurement range of 5-25.6 g/dl with Hct range of 15-75%
Storage maximum test results
Portable Operated by Battery or, Optional AC Adapter
Small and handled for immediate Diagnosis
Ready to use in any Point of Care setting
Dry Strips hence easy to carry anywhere
Convenient Can test Capillary and venous whole Blood.
Minimum Training required
Easy to use large LCD
Quick data Transfer via USB Port

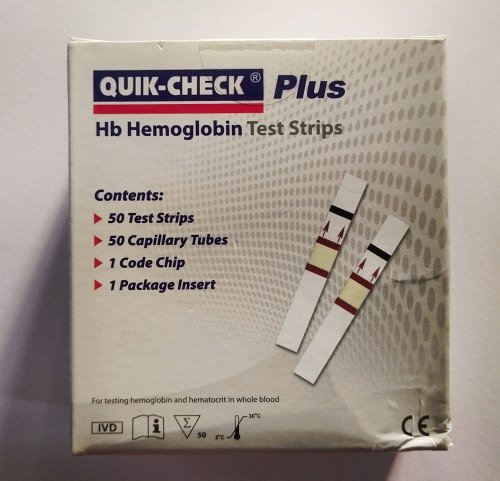

Quikchek Plus Hb Strips Special Strips for Digital meter

HB Meter Features Specifications
Methodology Reflectance Photometry
Detection Principle Methemoglobin
Time to Results < 15 seconds
Memory 1,000 tests with date/time and ID number
Specimen Volume 10 µL
Specimen Type Capillary and Venous whole blood
Hb Measurement Range 4.5-25.6 g/dL
Hct Range 13-75%
Wavelengths 525 nm
PC Interface Mini USB Port
Calibration Automatic
Hb Within Run Precision CV ≤ 3%
Hb Total Precision CV ≤ 3%
Accuracy Venous Blood: Y=0.9582X+0.5673, R2=0.992;
Capillary Blood: Y=1.006X+0.026, R2=0.993
Operating Conditions 10 – 40 ºC (50 -104 ºF); ≤90％ RH
Meter Storage Conditions 0-50 °C (32-122 °F); ≤90% RH
Strip/Device Storage Conditions 2-30 °C (36-86 °F); ≤85% RH
Strip/Device Shelf Life 2 years unopened canister; 3 months opened canister
Power Source 4*AAA (1.5 V) or AC adapter (Mini USB, 5 V dc, 50 mA)
Battery Life 2,700 tests or 360 hours
Automatic Shut Off 8 minutes
Meter Dimensions (L X W X H) 137mm × 79 mm × 26 mm (5.4″x 3.11″x 1.02″)
LCD Dimensions (L X W) 50 mm × 50 mm (1.97″x 1.97″)

Sales Package
1 Full Kit Quikchek Plus HB Monitoring System, 10 Strips, 10 Lancets, Lancing Device, Pouch, Owners Manual.
