Quikchek Plus Hb Meter & Test Strips Complete Guide: Hb, Hct, Compatibility, Use & Specifications Handle
Dr Pramod kumar

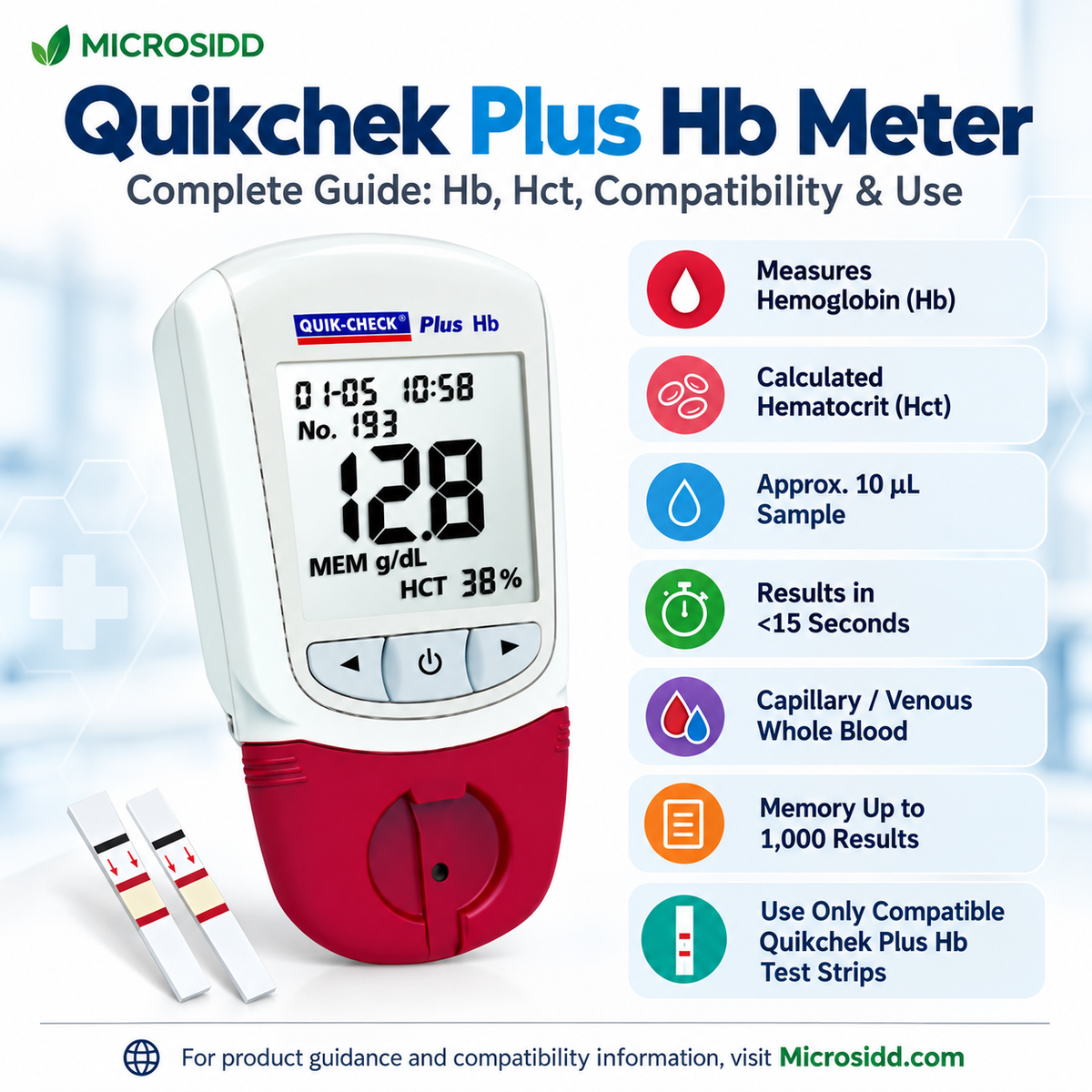

The Quikchek Plus Hb Meter from ACON is a portable digital hemoglobin testing system designed for rapid quantitative measurement of Hemoglobin (Hb) and calculated Hematocrit (Hct) using compatible Quikchek Plus Hb Test Strips.
The system is designed for point-of-care testing environments where a rapid Hb result is useful, including clinics, hospitals, diagnostic centres, screening programmes and other professional healthcare settings.
The current Quikchek Plus system requires approximately 10 µL of capillary or venous whole blood and provides results in less than approximately 15 seconds.
This guide explains Quikchek Plus strip compatibility, Hb and Hct testing, sample requirements, measurement ranges, testing method, memory, storage, use and common buying questions.
Shop the meter: Quikchek Plus Hb Meter →
Compatible strips: Quikchek Plus Hb Test Strips 50 →
What Is the Quikchek Plus Hb Meter?
The Quikchek Plus Hb Meter is a portable digital hemoglobin monitoring system manufactured by ACON.
It is designed to measure:
- Hemoglobin (Hb)
- Calculated Hematocrit (Hct)
The system uses a disposable dry-reagent Hb test strip together with a small whole-blood specimen.
The meter then analyses the strip reaction and displays the Hb result together with the applicable calculated Hct value.
Quikchek Plus Hb Meter Specifications
| Specification | Quikchek Plus Hb Meter |
|---|---|
| Manufacturer | ACON |
| Measured parameter | Hemoglobin (Hb) |
| Additional output | Calculated Hematocrit (Hct) |
| Method | Reflectance photometry |
| Detection principle | Methemoglobin |
| Sample type | Capillary or venous whole blood |
| Approx. sample volume | 10 µL |
| Approx. result time | Less than 15 seconds |
| Hb measurement range | Approx. 4.5–25.6 g/dL |
| Calculated Hct range | Approx. 13–75% |
| Measurement wavelength | Approx. 525 nm |
| Memory | Up to approximately 1,000 results |
| Stored information | Date, time and ID |
| Calibration | Automatic |
| PC interface | Mini USB |
| Operating temperature | Approx. 10–40°C |
| Operating humidity | Up to approximately 90% RH |
| Automatic shut-off | Approx. 8 minutes |
What Does Quikchek Plus Measure?
Hemoglobin (Hb)
The main measured parameter is hemoglobin concentration, typically displayed in g/dL.
Hemoglobin is the oxygen-carrying protein present inside red blood cells.
Calculated Hematocrit (Hct)
The system also provides a calculated hematocrit percentage.
Hematocrit represents the proportion of blood volume occupied by red blood cells.
The Hct displayed by the Quikchek Plus system is a calculated value and should not automatically be treated as identical to a direct laboratory hematocrit measurement performed by another method.
Which Test Strips Work with Quikchek Plus?
Use only:
Quikchek Plus Hb Test Strips.
Microsidd currently offers the compatible refill product in a 50-test strip pack.
Shop Quikchek Plus Hb Test Strips 50 →
Do not assume that Mission Hb strips, TrueHb strips, glucose strips or other hemoglobin strips will work with the meter.
For detailed matching guidance:
Quikchek Plus Hb Test Strip Compatibility Guide →
Are Hb Test Strips Included with the Meter?
The current Microsidd Quikchek Plus Hb Meter-only listing does not include Hb test strips.
Compatible strips must be purchased separately before testing.
Customers who want a meter together with strips can instead choose:
Quikchek Plus Hb Meter with 50 Strips →
How Much Blood Does Quikchek Plus Need?
The system requires approximately:
10 µL of whole blood.
Supported specimen types include:
- capillary whole blood, and
- venous whole blood.
Always use the specimen type and collection procedure specified in the current manufacturer instructions.
How Fast Is the Quikchek Plus Hb Test?
The meter provides the Hb result in less than approximately 15 seconds after an adequate specimen has been correctly applied.
This rapid testing time can be useful in professional point-of-care settings where a prompt result is needed.
Quikchek Plus Hb Measurement Range
The current Hb measurement range is approximately:
4.5–25.6 g/dL
The calculated hematocrit range is approximately:
13–75%
A result outside the expected clinical range should be interpreted in the appropriate clinical context rather than diagnosed from the meter reading alone.
How Does the Quikchek Plus Hb Meter Work?
The system uses reflectance photometry together with a methemoglobin detection principle.
In simplified terms:
- A compatible Quikchek Plus Hb strip is inserted into the meter.
- The required whole-blood specimen is applied to the strip.
- The reagent system on the strip reacts with hemoglobin.
- The meter measures the optical response from the reaction area.
- The system calculates the hemoglobin concentration.
- The Hb and calculated Hct values are displayed.
The meter and strip therefore function together as one testing system.
What Is Reflectance Photometry?
Reflectance photometry is an optical measurement method.
After the specimen reacts with the strip reagents, the meter measures reflected light from the test area and uses the measured optical response to determine the Hb concentration.
This is why the correct compatible strip and calibration system are important.
What Is the Methemoglobin Detection Principle?
The compatible reagent strip converts hemoglobin into a form that can be measured optically by the meter.
The Quikchek Plus analyser then uses the reaction intensity to calculate the Hb concentration.
Users do not manually calculate the result.
How to Use the Quikchek Plus Hb Meter
General testing steps include:
- Prepare the meter and testing supplies.
- Confirm that the strip is a compatible Quikchek Plus Hb Test Strip.
- Insert the strip correctly into the meter.
- Prepare the required capillary or venous whole-blood specimen.
- Apply approximately 10 µL of blood according to the strip instructions.
- Allow the meter to analyse the specimen.
- Read the Hb and applicable calculated Hct result.
- Dispose of the used strip and blood-contact materials appropriately.
For step-by-step guidance:
How to Use Quikchek Plus Hb Meter & Test Strips →
Does Quikchek Plus Require Calibration?
The system uses automatic calibration with the appropriate compatible testing system.
Users should still follow any strip lot, coding or setup instructions provided with the current meter and strip package.
Do not assume calibration procedures from another Hb meter apply to Quikchek Plus.
Quikchek Plus Memory
The meter can store up to approximately 1,000 test results.
Stored records can include:
- Hb result,
- date,
- time, and
- ID information.
This can be useful in professional workflows where previous testing records need to be reviewed.
Mini USB Connectivity
The current Quikchek Plus system includes a Mini USB interface for compatible data transfer.
Actual data-transfer workflow depends on the compatible software and equipment being used.
Operating Conditions
The current meter specification lists an operating temperature of approximately:
10–40°C
and operating humidity of approximately:
≤90% RH.
The meter should be used within its specified environmental conditions.
Test strip storage requirements may differ from meter storage requirements.
Quikchek Plus Hb Strip Expiry & Storage
Hb strips are diagnostic consumables and should be stored according to the instructions supplied with the current strip pack.
General principles include:
- keep strips in the original manufacturer packaging,
- keep the container properly closed where applicable,
- protect strips from excessive heat and moisture,
- do not use damaged strips,
- do not reuse a strip, and
- do not use strips after their applicable expiry.
For the model-specific guide:
Quikchek Plus Hb Strips Expiry & Storage Guide →
Quikchek Plus Hb Meter vs Mission Hemoglobin Monitor
Quikchek Plus and Mission are closely related professional Hb testing systems.
| Feature | Quikchek Plus | Mission Hb |
|---|---|---|
| Hb | Yes | Yes |
| Calculated Hct | Yes | Yes |
| Approx. sample | 10 µL | 10 µL |
| Approx. result time | <15 sec | <15 sec |
| Compatible strips | Quikchek Plus Hb | Mission Hb |
Even where specifications are similar, the strips should not be assumed to be interchangeable.
Quikchek Plus vs TrueHb
Quikchek Plus provides a faster current listed result time and calculated Hct, while TrueHb is another portable Hb monitoring platform with a rechargeable battery.
| Feature | Quikchek Plus | TrueHb |
|---|---|---|
| Approx. sample | 10 µL | 10–12 µL |
| Approx. result time | <15 sec | Within 60 sec |
| Calculated Hct | Yes | Not listed as primary current output |
| Memory | Up to 1,000 | Up to 1,000 |
| Compatible strip system | Quikchek Plus | TrueHb |
For the full three-system comparison:
Quikchek Plus vs Mission vs TrueHb Hemoglobin Meter Comparison →
Is Quikchek Plus a Glucometer?
No.
A glucometer measures blood glucose.
Quikchek Plus measures hemoglobin concentration and calculated hematocrit.
Glucose strips cannot be used with the Quikchek Plus Hb meter.
Does Quikchek Plus Measure HbA1c?
No.
Quikchek Plus is designed for quantitative hemoglobin concentration testing.
HbA1c is a different test measuring glycated hemoglobin and requires an appropriate HbA1c testing system.
Can Quikchek Plus Diagnose Anemia?
The meter provides a quantitative hemoglobin result that can support anemia screening and clinical assessment.
It does not independently determine:
- the cause of anemia,
- iron status,
- the type of anemia, or
- the appropriate treatment.
Abnormal results should be interpreted by an appropriately qualified healthcare professional.
Who May Use Quikchek Plus?
The system may be useful in appropriate professional testing environments such as:
- hospitals,
- physician clinics,
- diagnostic centres,
- nursing facilities,
- health screening programmes,
- occupational health screening,
- medical camps, and
- mobile healthcare services.
Use should follow the manufacturer's intended-use instructions and applicable professional procedures.
Should You Buy the Meter Alone or the Meter + 50 Strips Combo?
Meter Only
The meter-only option may be appropriate if you already have compatible Quikchek Plus Hb strips or want to purchase strips separately.
Meter + 50 Strips
The combination may be more convenient for a new user who needs both the meter and compatible consumables to begin testing.
Shop Quikchek Plus Meter + 50 Strips →
If You Already Own a Quikchek Plus Meter
You normally only need compatible replacement strips rather than another meter.
Microsidd currently supplies:
Quikchek Plus Hb Test Strips 50 →
Before ordering, verify that the model printed on your meter is Quikchek Plus Hb.
Frequently Asked Questions
What does the Quikchek Plus Hb Meter measure?
It quantitatively measures hemoglobin and provides a calculated hematocrit value.
How much blood is required?
Approximately 10 µL of whole blood.
How fast is the result?
Less than approximately 15 seconds.
Can capillary blood be used?
Yes. The current system supports capillary whole blood.
Can venous blood be used?
Yes. Appropriately collected venous whole blood is also supported.
What is the Hb range?
Approximately 4.5–25.6 g/dL.
What is the Hct range?
The calculated hematocrit range is approximately 13–75%.
How many results can the meter store?
Up to approximately 1,000 results.
Does it have USB connectivity?
Yes. The current system includes a Mini USB interface for compatible data transfer.
Are strips included with the meter-only listing?
No. Compatible Quikchek Plus Hb Test Strips must be purchased separately.
Which strips should I buy?
Use only compatible Quikchek Plus Hb Test Strips.
Can Mission Hb strips be used?
Do not substitute Mission strips. Use the strip system specified for the Quikchek Plus Hb Meter.
Can TrueHb strips be used?
No. TrueHb is a different Hb testing platform.
Is Quikchek Plus a glucose meter?
No. It is a hemoglobin testing system.
Does it measure HbA1c?
No. HbA1c requires a separate appropriate testing system.
