Accurex Lipid Profile Meter Accuracy vs Laboratory Lipid Profile: Why Results May Differ
Dr Pramod kumar
The Accurex LPM-101 Lipid Profile Meter is a portable point-of-care system designed to provide quantitative lipid results within approximately two minutes.
When used with the compatible LPS-101 3-in-1 Lipid Profile Test Strip, the system directly measures:
- Total Cholesterol – TC
- HDL Cholesterol
- Triglycerides – TG
It can then calculate:
- LDL Cholesterol
- TC/HDL Ratio
A common question is:
“Why does my Accurex lipid meter result differ from my laboratory lipid profile?”
A difference does not automatically mean that either result is wrong.
Point-of-care and laboratory systems can differ in specimen type, analytical method, sample collection, timing, calibration, environmental conditions and the way calculated values such as LDL are produced.
This guide explains those differences and shows how to compare Accurex results with laboratory lipid testing more appropriately.
Quick Answer: Should Accurex and Laboratory Results Be Exactly the Same?
No.
Two legitimate lipid measurements performed on different analytical systems should not necessarily be expected to produce exactly identical numerical results.
Minor or sometimes clinically meaningful differences can arise because:
- Different analytical technologies are being used.
- Capillary and venous specimens may be collected differently.
- The tests may have been performed at different times.
- The patient's fasting or non-fasting state may differ.
- The specimen may have been handled differently.
- The Accurex meter may calculate LDL while the laboratory may use another calculation or a direct LDL method.
- Normal analytical variation exists in every measurement system.
The better question is therefore not:
“Are the numbers exactly identical?”
but:
“Were both tests performed correctly, and is any difference clinically important?”

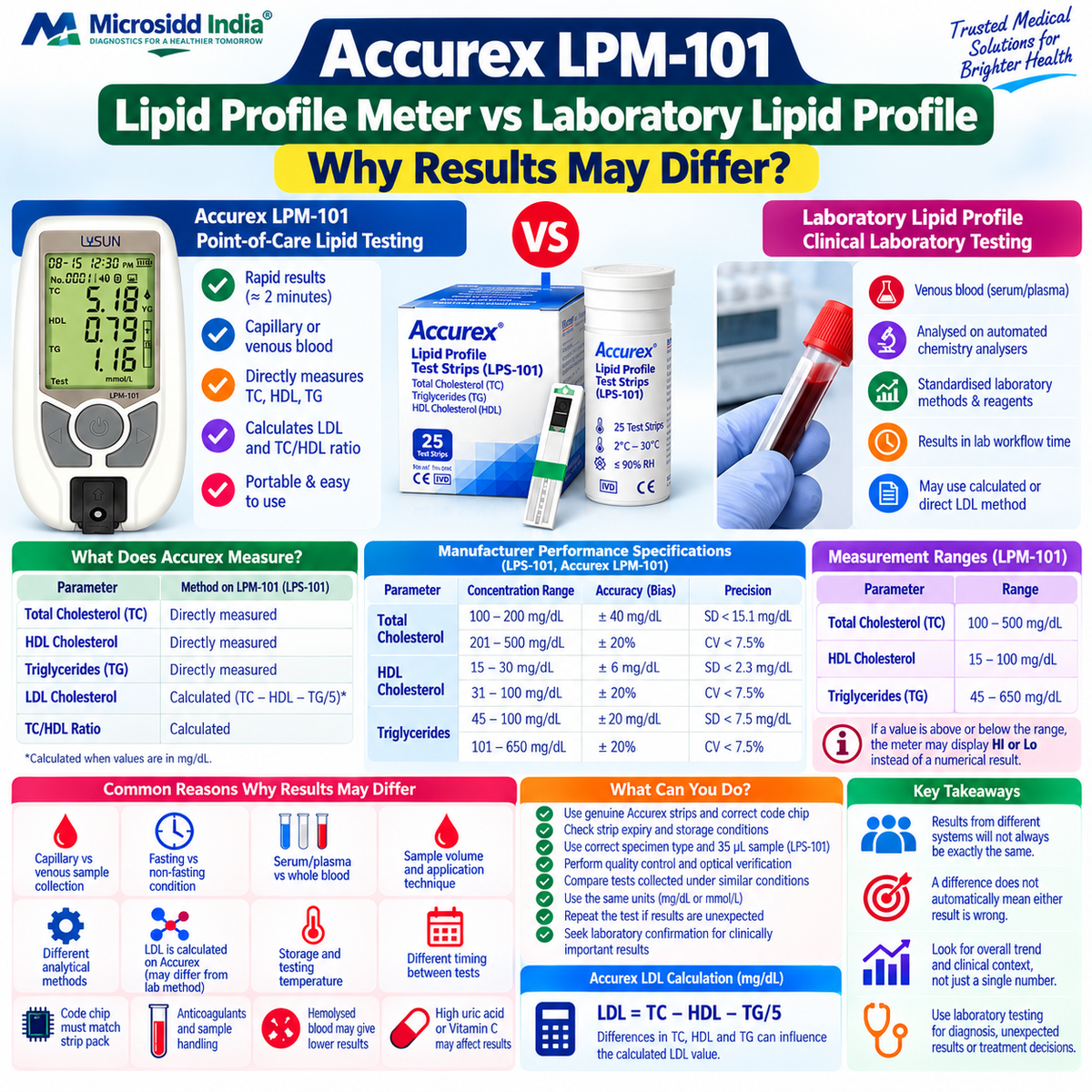

Accurex vs Laboratory Lipid Profile at a Glance
| Feature | Accurex LPM-101 | Laboratory Lipid Profile |
|---|---|---|
| Testing Location | Point of care / clinic / screening setting | Clinical laboratory |
| Analytical Method | Reflectance photometry / dry chemistry | Method depends on laboratory analyser and reagent system |
| Typical Result Time | Approx. 2 minutes | Depends on laboratory workflow |
| Capillary Whole Blood | Supported | Not the usual specimen for many routine laboratory lipid panels |
| Venous Whole Blood | Supported | Usually processed into serum or plasma depending on laboratory method |
| Serum / Plasma | Supported according to manufacturer instructions | Common laboratory specimen type |
| TC | Directly measured | Measured |
| HDL | Directly measured | Measured |
| TG | Directly measured | Measured |
| LDL | Calculated with the system formula when applicable | May be calculated or directly measured depending on laboratory method |
How Does the Accurex LPM-101 Measure Lipids?
The Accurex / LPM-101 system uses reflectance photometry.
After the specimen is applied to the compatible test strip:
- The sample enters the strip reaction area.
- Blood cells are filtered or processed by the strip system.
- The target lipid components react with reagents in the strip.
- The chemical reaction produces a colour change.
- The meter measures reflected light from the reaction area.
- The optical response is converted into a lipid concentration.
The manufacturer specifies optical measurement at approximately 620 nm.
How Does a Laboratory Measure Lipids?
Clinical laboratories commonly use automated chemistry analysers with laboratory reagent systems.
The exact technology varies according to:
- Laboratory analyser
- Reagent manufacturer
- Calibration system
- Sample matrix
- Laboratory standardisation
Therefore, an Accurex point-of-care result and a laboratory result can be measuring the same lipid parameter using different analytical systems.
What Does “Accuracy” Mean?
Accuracy describes how close a measurement is to an accepted reference or target value.
It is different from precision.
Precision describes how closely repeated measurements agree with one another when the same specimen is tested repeatedly.
A system can therefore have:
- Good repeatability
without every result being numerically identical to another analytical method.
Accurex Manufacturer Accuracy Specifications
The LPM-101 manufacturer publishes analytical bias limits for Total Cholesterol, HDL and Triglycerides.
| Parameter | Concentration Range | Manufacturer Bias Specification |
|---|---|---|
| Total Cholesterol | 100–200 mg/dL | Within approximately ±40 mg/dL |
| 201–500 mg/dL | Within approximately ±20% | |
| HDL Cholesterol | 15–30 mg/dL | Within approximately ±6 mg/dL |
| 31–100 mg/dL | Within approximately ±20% | |
| Triglycerides | 45–100 mg/dL | Within approximately ±20 mg/dL |
| 101–650 mg/dL | Within approximately ±20% |
These figures are manufacturer analytical performance specifications. They should not be interpreted as a promise that every Accurex result will differ from a laboratory result by exactly this amount.
Accurex Precision Specifications
The manufacturer also publishes repeatability / precision criteria.
| Parameter | Concentration Range | Precision Specification |
|---|---|---|
| TC | 100–200 mg/dL | SD < approximately 15.1 mg/dL |
| 201–500 mg/dL | CV < approximately 7.5% | |
| HDL | 15–30 mg/dL | SD < approximately 2.3 mg/dL |
| 31–100 mg/dL | CV < approximately 7.5% | |
| TG | 45–100 mg/dL | SD < approximately 7.5 mg/dL |
| 101–650 mg/dL | CV < approximately 7.5% |
Why Point-of-Care and Laboratory Lipid Results Can Differ
There are several possible reasons.
1. Capillary Blood vs Venous Laboratory Sample
The Accurex system can use fingertip capillary blood.
A laboratory lipid profile is more commonly performed using blood collected from a vein and processed according to the laboratory's method.
These are different collection workflows.
A capillary test can be affected by:
- Finger-prick technique
- Blood-drop selection
- Excessive finger squeezing
- Sample-volume accuracy
- Delay between collection and testing
The Accurex manufacturer specifically instructs users to wipe away the first capillary blood drop and test using the subsequent appropriate drop.
2. Sample Volume Matters
The LPS-101 3-in-1 lipid profile strip requires approximately:
35 µL of specimen
An underfilled or incorrectly applied test strip may not perform as intended.
The manufacturer recommends using a capillary transfer tube or pipette rather than estimating the sample volume visually.
Read: How to Use Accurex Lipid Profile Meter & LPS-101 Strips
3. The Sample Type Setting Must Be Correct
The Accurex meter can be configured for:
- Capillary whole blood
- Venous whole blood
- Plasma / serum
The meter setting should correspond to the specimen being tested.
A mismatch between actual specimen type and meter configuration can make a comparison with a laboratory result less meaningful.
4. Timing Between the Two Tests
A point-of-care test and laboratory test performed:
- On different days
- Several hours apart
- Before and after a meal
- Before and after medication
should not automatically be expected to provide identical results.
Triglycerides in particular can be influenced by recent food intake.
If the purpose is to compare two analytical systems, testing under similar physiological conditions provides a more meaningful comparison.
5. Fasting vs Non-Fasting Testing
Lipid testing may be performed under fasting or non-fasting conditions depending on the clinical purpose and professional instructions.
However, if one test is fasting and another is performed after a meal, triglyceride results may differ.
Because the Accurex LPS-101 system also uses triglycerides when calculating LDL, a change in triglycerides may also affect the displayed calculated LDL value.
When comparing results, note whether both samples were collected under comparable conditions.
6. Accurex LDL Is Calculated
The Accurex LPS-101 strip directly measures:
- TC
- HDL
- TG
It does not directly measure LDL with the 3-in-1 panel.
The meter calculates LDL using:
LDL = TC − HDL − TG/5
when values are expressed in mg/dL.
Therefore, any variation in:
- TC
- HDL
- TG
can also influence the calculated LDL result.
7. Your Laboratory May Use a Different LDL Method
A laboratory report may provide LDL using:
- A calculation
- A different calculation formula
- A direct LDL assay
depending on the laboratory system and clinical situation.
Therefore, two LDL values may differ even when the underlying TC, HDL and TG results are relatively close.
8. Different Analytical Technologies
The Accurex LPM-101 uses dry-chemistry reflectance photometry.
A central laboratory may use a large automated chemistry platform with a different:
- Reagent system
- Calibration procedure
- Optical method
- Reaction chemistry
- Measurement algorithm
The systems therefore should not be expected to behave as though they are the same analyser.
9. Code-Chip Matching
Accurex strips use a code-chip system.
The code chip supplied with the current strip box must correspond to the strip lot.
Before testing, confirm that:
- The correct chip is installed.
- The code on the meter matches the strip package.
- The chip belongs to the current strip box.
An incorrect code chip can affect result reliability.
Read the Accurex Test Strip Compatibility Guide
10. Strip Expiry and Storage
Accurex lipid test strips should be stored at approximately:
2°C–30°C
with relative humidity within the manufacturer's specified limit.
Problems can occur if strips have been:
- Stored above the recommended temperature
- Exposed to moisture
- Left in direct sunlight
- Left inside a hot vehicle
- Used beyond their printed expiry
- Used beyond the applicable opened-canister period
Read the Accurex Lipid Profile Test Strips Expiry & Storage Guide
11. Operating Temperature
The LPM-101 is designed to perform tests at approximately:
10°C–35°C
Testing outside the permitted operating range can trigger an error or affect the intended testing conditions.
Allow the meter, specimen and strips to reach an appropriate operating environment before testing.
12. Venous Whole Blood Must Be Mixed Correctly
For venous whole-blood specimens, the manufacturer recommends mixing the sample thoroughly before testing.
This helps ensure cellular components are distributed evenly throughout the specimen.
The manual specifies that venous whole blood should generally be tested within approximately:
8 hours after collection
and refrigerated specimens should be allowed to reach the operating temperature before testing.
13. Anticoagulant Choice Can Matter
The manufacturer recommends:
- Heparin
- EDTA
for appropriate venous whole-blood collection.
However, the manufacturer's limitations specifically state that EDTA plasma should not be used because it may produce higher results.
Other anticoagulants such as citrate, fluoride-containing tubes and iodoacetate are also not recommended for this system.
This distinction is important:
EDTA venous whole blood and EDTA plasma are not the same specimen condition.
14. Hemolysed Blood May Affect Results
The manufacturer warns that hemolysed blood may produce lower results.
A specimen with significant hemolysis should therefore not automatically be compared directly with a correctly collected laboratory specimen.
15. Blood from Patients Receiving Thrombolytic Therapy
The LPM-101 limitations also state that blood from patients undergoing thrombolytic therapy may produce lower results.
Clinical context should therefore always be considered when interpreting point-of-care values.
16. Venous Occlusion Can Affect Results
The manufacturer states that venous occlusion may increase measured results and advises against prolonged venous occlusion during blood collection.
This is another example of a pre-analytical factor: the result can be affected before the specimen ever reaches the meter or laboratory analyser.
17. Certain Substances Can Interfere at High Concentrations
The LPM-101 manual lists concentrations of several substances tested for interference.
It also specifically warns that high concentrations of:
- Uric acid
- Ascorbic acid / Vitamin C
can lead to lower measurements.
This does not mean normal dietary intake automatically causes incorrect results; rather, it is a manufacturer-documented analytical limitation at sufficiently high concentrations.
Why LDL Differences Can Appear Larger Than TC Differences
Consider a simplified example.
Suppose two testing systems produce slightly different values for:
- Total Cholesterol
- HDL
- Triglycerides
If LDL is then calculated from all three measurements, those individual differences are incorporated into the LDL calculation.
Therefore:
A relatively small difference in several measured values can create a larger-looking difference in calculated LDL.
Accurex Measurement Ranges
The manufacturer specifies the following approximate measurement ranges:
| Parameter | Measurement Range |
|---|---|
| Total Cholesterol | 100–500 mg/dL |
| HDL | 15–100 mg/dL |
| Triglycerides | 45–650 mg/dL |
If a value falls outside the applicable range, the meter may display HI or Lo rather than an exact numerical result.
What Should You Do If Accurex and Laboratory Results Differ?
Start by reviewing whether the two tests were genuinely comparable.
Check:
- Were both tests performed on the same day?
- Was the patient fasting for both or non-fasting for both?
- Was the Accurex result from capillary blood while the laboratory used venous serum?
- Was the correct Accurex specimen type selected?
- Was the correct code chip used?
- Were the strips within expiry?
- Were the strips stored correctly?
- Was the correct 35 µL sample volume used for LPS-101?
- Was the second capillary blood drop used?
- Was the meter within 10°C–35°C?
- Did quality control pass?
Do Not Compare Two Results Without Considering Timing
For example:
Accurex Monday morning + laboratory Thursday afternoon
is not a clean analytical comparison.
The patient's biological lipid concentrations may have changed between the two collection times.
A more meaningful comparison uses samples collected as close together as practically possible and under similar conditions.
What If the Difference Is Small?
A modest numerical difference can occur because no analytical measurement is completely free from variation.
Look at:
- The actual size of the difference
- Which lipid parameter is involved
- Whether the result changes clinical interpretation
- Whether the same trend appears on repeat testing
Do not judge accuracy solely by expecting two different systems to show exactly the same number.
What If the Difference Is Large?
If Accurex and laboratory results differ substantially:
- Review the complete Accurex testing procedure.
- Check strip expiry and storage.
- Confirm the correct code chip.
- Check sample collection and volume.
- Run appropriate quality control.
- Perform optical verification if meter performance is in question.
- Repeat testing where appropriate.
- Use an appropriate laboratory result for clinical confirmation.
Quality Control Before Comparing Results
If the meter is being used professionally and accuracy is questioned, perform the manufacturer's recommended quality-control procedure.
The LPM-101 manufacturer recommends control testing particularly:
- When a new strip package is opened
- When a new operator begins using the meter
- When results appear inaccurate
- After maintenance or service
Read the Accurex Quality Control & Optical Verification Guide
When Should Optical Verification Be Performed?
An optical check can help determine whether the meter's reflectance-reading system is functioning correctly.
It is especially relevant if:
- The meter was dropped.
- The meter became wet.
- The optical sensor may be contaminated.
- Unexpected results persist despite correct testing technique.
The manufacturer's Optical Verify Strip displays:
OH = Optical verification passed
FL = Optical verification failed
Can Accurex Replace a Central Laboratory Lipid Profile?
The Accurex system is designed for quantitative point-of-care lipid testing and can be valuable for rapid screening, monitoring and appropriate professional workflows.
However, it should not automatically be treated as a universal substitute for laboratory testing.
Laboratory testing remains important when:
- A diagnosis is being established.
- A result is unexpected or inconsistent.
- A treatment decision depends on precise lipid assessment.
- Results are near an important clinical decision threshold.
- Additional lipid or biochemical tests are required.
- A healthcare professional requests laboratory confirmation.
Point-of-Care Testing and Laboratory Testing Have Different Strengths
Accurex Point-of-Care Testing
- Rapid results
- Portable system
- Suitable for clinics and screening programmes
- Small specimen volume
- Useful where immediate lipid information is valuable
Laboratory Lipid Testing
- Centralised laboratory quality systems
- Standardised automated analysers
- Broader test menus
- Additional confirmatory measurements
- Appropriate for diagnosis and complex clinical decision-making
These approaches can complement one another rather than being viewed as competing systems in every situation.
Can You Use Accurex to Monitor Trends?
Repeated point-of-care testing can be useful for monitoring trends when testing conditions are kept consistent.
For better comparability:
- Use the same meter.
- Use genuine compatible strips.
- Use proper quality control.
- Use consistent specimen collection.
- Test under similar fasting / non-fasting conditions where relevant.
- Use the same units.
Trend interpretation should still be made in the appropriate clinical context.
Do Not Compare mg/dL with mmol/L Without Conversion
The Accurex meter can display results in:
- mg/dL
- mmol/L
If a laboratory report uses different units, the numbers will look very different even when they represent the same concentration.
Always confirm the units before deciding that the results disagree.
Accurex Accuracy Checklist
If results seem questionable, check:
- ✓ Correct Accurex meter
- ✓ Correct compatible strip
- ✓ Correct strip lot and code chip
- ✓ Strip within expiry
- ✓ Correct strip storage
- ✓ Correct specimen type selected
- ✓ Correct blood sample volume
- ✓ Second capillary drop used
- ✓ Venous blood mixed properly
- ✓ Correct anticoagulant used
- ✓ Test performed at 10°C–35°C
- ✓ Meter optical area clean
- ✓ Quality control passed
- ✓ Units match the laboratory report
- ✓ Tests were performed under comparable conditions
Frequently Asked Questions
Is the Accurex Lipid Profile Meter accurate?
The manufacturer publishes analytical accuracy and precision specifications for Total Cholesterol, HDL and Triglycerides. Accurate use also depends on correct strips, code-chip matching, sample collection, sample volume, storage, temperature and quality control.
Should an Accurex result exactly match a laboratory result?
No. Different analytical methods, specimen types, collection conditions and normal analytical variation can produce numerical differences.
Why is my Accurex cholesterol different from my laboratory cholesterol?
Possible reasons include capillary vs venous sampling, testing at different times, strip or code-chip issues, temperature, storage, sample volume and differences between analytical systems.
Does Accurex directly measure LDL?
No. With the LPS-101 lipid panel, TC, HDL and TG are directly measured and LDL is calculated.
How does Accurex calculate LDL?
The manufacturer specifies LDL = TC − HDL − TG/5 when values are expressed in mg/dL.
Can a laboratory LDL result differ from Accurex LDL?
Yes. A laboratory may use a different LDL calculation or direct LDL assay, and small differences in TC, HDL and TG can also change the calculated Accurex LDL result.
Does fasting affect the comparison?
It can, particularly through changes in triglycerides. If two results are being compared, similar fasting or non-fasting conditions make the comparison more meaningful.
Should I use the first blood drop for Accurex?
No. For capillary testing, the manufacturer instructs users to wipe away the first drop and use the subsequent appropriate blood drop.
How much blood does LPS-101 require?
The 3-in-1 LPS-101 lipid panel requires approximately 35 µL.
Can high Vitamin C affect Accurex results?
The manufacturer notes that high concentrations of ascorbic acid can produce lower measurements.
Can high uric acid affect results?
Yes. The manufacturer notes that high uric acid concentrations can lead to lower measurements.
Can hemolysed blood affect Accurex results?
Yes. The manufacturer's limitation section states that hemolysed blood may produce lower results.
Which anticoagulants can be used for venous whole blood?
The manufacturer recommends heparin or EDTA for venous whole blood. Follow the current product instructions because specimen requirements differ between whole blood and plasma.
Can EDTA plasma be used?
The LPM-101 manufacturer specifically advises against EDTA plasma because it may produce higher results.
What should I do if Accurex and lab results are very different?
Review the entire testing workflow, perform quality control and optical verification where appropriate, repeat testing with fresh compatible materials, and use laboratory confirmation for clinically important decisions.
Can Accurex replace laboratory testing?
Accurex is useful for quantitative point-of-care lipid testing, but laboratory confirmation remains appropriate for diagnosis, unexpected findings, treatment decisions and other clinically important situations.
Related Accurex Knowledge Hub Guides
Accurex Lipid Profile Meter & Test Strips Complete Guide
Learn about the complete Accurex LPM-101 system
Accurex Lipid Profile Test Strip Compatibility Guide
Compare LPS-101, TCS-101, TGS-101 and HLS-101
How to Use Accurex Lipid Profile Meter & LPS-101 Strips
Follow the testing procedure step by step
Accurex Lipid Profile Test Strips Expiry & Storage Guide
Learn correct strip storage and expiry management
Accurex Lipid Profile Meter Error Codes & Troubleshooting Guide
Troubleshoot Accurex error messages and testing problems
Accurex Lipid Profile Meter Quality Control & Optical Verification Guide
Learn how to verify meter and test-system performance
Total Cholesterol Meter vs Lipid Profile Meter: QuikCheck vs Accurex
Compare Total Cholesterol-only and multi-parameter lipid testing
Shop Accurex Lipid Testing Products
Accurex Lipid Profile Meter
Portable Blood Lipid Analysis System for quantitative point-of-care lipid testing.
View Accurex Lipid Profile Meter
Accurex Lipid Profile Test Strips – 25 Pack
Compatible 3-in-1 strips for direct TC, HDL and TG measurement with calculated LDL and TC/HDL ratio.
View Accurex Lipid Profile Test Strips
Important Medical Interpretation Note
A lipid-meter result should not be judged as “correct” or “incorrect” solely because it differs numerically from a laboratory report.
Proper interpretation requires consideration of:
- Analytical method
- Specimen type
- Sample collection
- Testing conditions
- Quality control
- Timing
- Clinical context
Laboratory lipid measurements are an important component of cardiovascular risk assessment, diagnosis and treatment monitoring. Unexpected, substantially discordant or clinically important point-of-care results should be confirmed using an appropriate laboratory method and interpreted by a qualified healthcare professional.
These diagnostic products are non-returnable and non-exchangeable.
Please verify the meter model, compatible strips, test requirement and pack configuration before placing your order.
Genuine cases involving an incorrect product received will be handled separately according to Microsidd.com's applicable policies and applicable law.
An original, continuous, unedited and uncut unboxing video is compulsory for making a claim regarding an incorrect product received.
