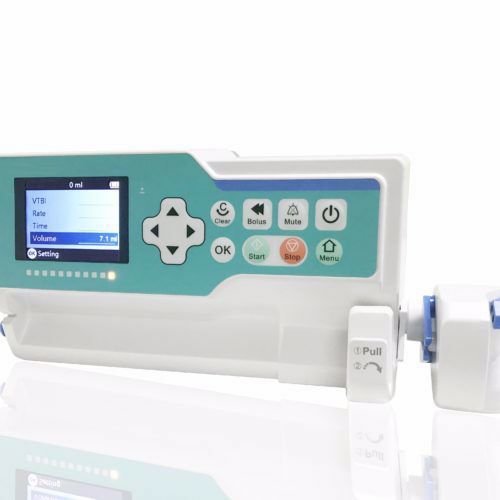

Model: SP301
Long run time battery with 12 Hours battery backup
Fast start function against start delay
Intuitive Keypad with Keypad locking system
With parameters enlarge function
DPS (Dynamic Pressure show)
2.8 inches TFT Display
5ml - 60ml syringe support
the range of limiting volume 0~999.9ml
the range of injected volume 0~9999.9ml
accuracy of flow rate
Within ±3% (Choose the syringe of specified manufacturer
correctly.
This accuracy of flow rate is not including the errors of syringe
itself.)
purge rate
Purge rate of 50ml syringe:1500ml/h;
Purge rate of 30ml syringe:900.0ml/h;
Purge rate of 20ml syringe:600.0ml/h;
Purge rate of 10ml syringe:300.0ml/h
alarm & warms
The pump can give out alarming when injection soon finish,
injection finishing, injection of limited amount finished,
injection is blocked, syringe falls off, syringe is improperly
installed, setting error, AC power has been pulled out,
low battery and so on.
injection blocked
Choose in the three kinds of occlusion alarm pressure
according to the clinical requirements(High,Medium,Low)
KVO rate 1ml/h
fuse specification
F1AL/250V ,two fuses(installed inside pump)
operating power
AC100~240.0V, 50/60Hz, Power:=30VA
Internal rechargeable battery: DC 11.1V,capacity=1600mAh.
The device could work constantly more than 4 hour at medium speed running mode, after the battery charged for 10 hours.
operating environment
temperature:+5~+40°C, relative humidity:20~90%
storing environment
temperature:-30°C~+55, relative humidity:=95%, ( No condensation state )
atmospheric pressure 860hPa~1060hPa
safety level
Class II with insulated enclosure, internal power supply,
BF-type continuous normal running equipment.
IP grade IPX1
dimensions 280(L)×210(W)×130(H)(mm)
weight 2.2kg
accessories Power line,operating manual,warranty card,product certification.
