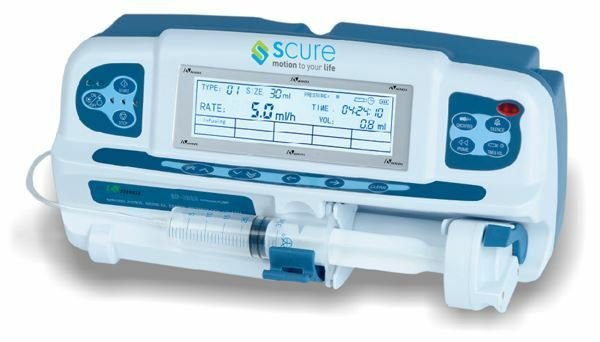

SP 101 | syringe pump
power supply
AC 85V or 265V ( at option )
DC inner power 10.8v
applicable syringe
all brands of diposable syringes by volume of 10ml, 20ml, 30ml & 50ml
flow rate option
0.1 ~ 600ml / h in .1ml / h increments ( 50ml injector )
0.1 ~ 400ml / h in .1ml / h increments ( 30ml injector )
0.1 ~ 300ml / h in .1ml / h increments ( 20ml injector )
0.1 ~ 200ml / h in .1ml / h increments ( 10ml injector )
total infused volume
0.1 ~ 999.9 ml in 0.1ml increments
accuracy
actuation accuracy: =± 1 %
infusion accuracy: ± 3 %
quick feed
200ml ( 10ml injector )
300ml ( 20ml injector )
400ml ( 30ml injector )
600ml ( 50ml injector )
occlusion pressure
low, medium, high can adjust
audible & visual alarm
near empty, empty, occlusion, remove, low battery exhausted, device, disengaged, motor trouble, falling of the injector AC power fail
specific functions
time and volume mode, indicating the remaining time of injection, automatic check, injector specifications, KVO functions, total indication of transfusion, quickfeed / prime function, battery capacity demonstration.
weight 2.3 kg
features
applicable to all brands of disposable syringe
clear-displaying on LCD screen remaining line of injection
automatically controlling syringe moving speed in accordance with specific volume and time presented for each injection
APPLICATION TO ALL BRANDS OF DISPOSABLE SYRINGE.
CLEAR DISPLAY ON LCD SCREEN REMAINING LINE OF INJECTION.
