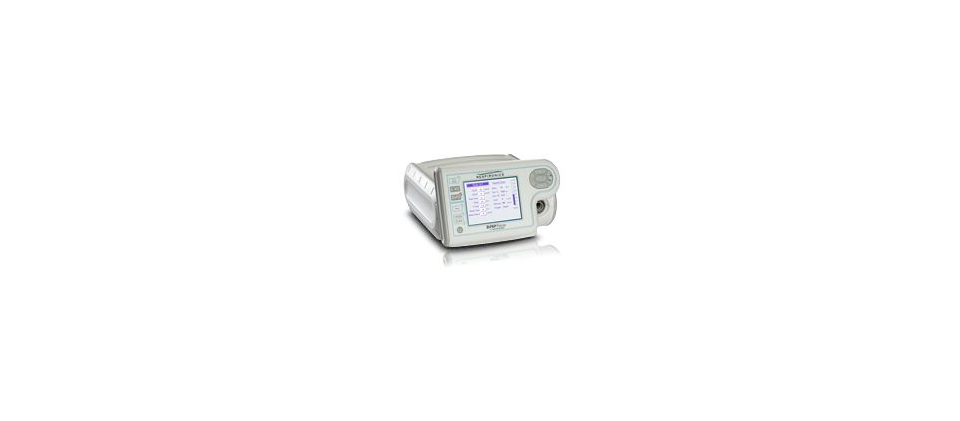

Respironics BiPAP Focus

Non-invasive ventilatior

The BiPAP Focus enhances staff efficiency and patient care while delivering reliable non-invasive ventilation (NIV). It adapts automatically to changing patient needs.

Specifications Show less

Controls

CPAP	4 - 20 cm H₂O
IPAP	4 - 30 cm H₂O
Ramp start	4 cmH20 - EPAP cm H₂O
EPAP	4 - 25 cm H₂O
Rise time	1 - 6 (1 = 0.1 s, 6 = 0.6 s) sec

I-time	0.5 - 0.3 sec
Ramp time	0 - 45 min
Maximum flow capability	160 l/min
Leak compensation	Up - 60 l/min

Physical

Dimensions (HxWxD)

140 mm x 290 mm x 355 mm (5.5 in x 11.4 in x 14 in)

Weight

4.5 kg (10 lb)

Patient parameters

Patient circuit pressure	0 - 35 cm H₂O
Estimated minute ventilation (MV)	0 - 99 l/min
Rate	0 - 99 beats per minute

Estimated tidal volume (VT)	0 - 4000 ml
Patient leak	0 - 200 l/min
Apnea rate	0 - 99 events per hour

Electrical

Input rating	100 VAC/230 VAC, 50/60 Hz
Battery backup	3.8 amp-hour (Ah) Nickel metal hydride (NiMH)

Fuse	Not replaceable
Nurse call	0.280 A (rated current) 250 V (rated voltage)

Alarms

Apnea rate	Off or 5, 10, 20 events per hour
High system pressure	5 cmH20 over target IPAP pressure cm H₂O
Low system pressure	5 cmH20 under target EPAP pressure cm H₂O

Apnea	Off or 20, 40, 60 sec
Nurse call	Normally open, normally closed

Adjustable user interface parameters

Alarm volume	Screen brightness
Display units	Screen contrast

Reverse video

Screen lock timer
