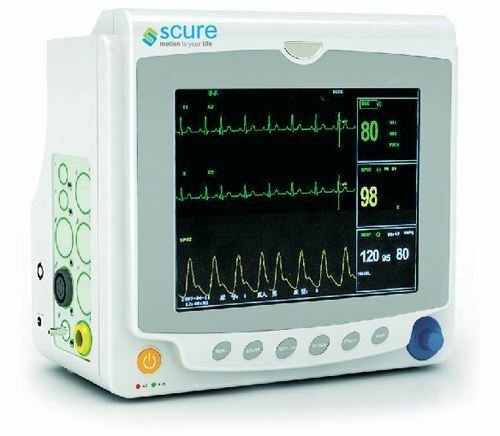

MP 8400 | Multi Parameter Monitor

Screen Size 8.4" 3 parameter / optional 5 parameter

short description:
Functioning of the heart (ECG/heart rate).
Pulse oximetry: Peripheral circulation and arterial blood oxygenation (SPO2).
Non-invasive arterial blood pressure.
Skin and cavity temperature.
Breathing by impedance (breathing rate/ respirogramm).
Strength of myocardial hypoxia (ischemia), (st-segment analysis).
Capnography/breathing (breathing rate, capnogramm, CO2, FiCO2).

NIBP

• Method Oscillometry
• Modes Manual / Auto / Continuous
• Auto Measure time Adjustable
• Measurement range 10-270mmHg

ECG

• Lead Mode 3-Iead Or 5-lead
• Lead Selection I, II, III, avR, avL, avF, v
• Heart rate range Adult: 15-300bpm, pediatric /
  Neonatal 15-300bpm
• ECG waveform 2 channals
• Accuracy ±1 bpm or±1 %, Whichever is greater
• S-T segment detection: Measurement range 0.2mv~2.0mv

Specification
+ Alarm Yes, audible and visual alarm, alarm events review
+ High resolution 12.1" or 8.4" color TFT display
+ Lightweight, compact and portable
+ ECG, SPO2, NIBP, RESP, 2-TEMP, PR
+ Built-in rechargeable lithium battery
+ ECG waveforms of 7-leads display on the same screen
+ 72-hours graphic and tabular trends of all parameters
+ 72 alarm events of all parameters recall
+ 32 seconds full-disclosure waveform review
+ 500 NIBP measurement data can be stored and recall
+ Data and waveforms color can be adjustable
+ Arithmetic analysis and S-T segment analysis
+ Suitable for adult, pediatric and neonatal patient

SPO2
Measurement range 0-100%
Accuracy 70-100%, ±2% 0-69%, unspecified

Pulse Rate
Range 20-254pm
Accuracy ±3bpm

Respiration
Method RA-LL impedance
Range Adult: 0-120rpm;pediatric/neonatal: 0-15rpm
Apnea alarm yes

Temperature
Range 0-50 °C
Accuracy ±0.1 °C
Channel Dual - channel

Optional
Nellcore SPO2, ETCO2, IBP, Printer & Networking
