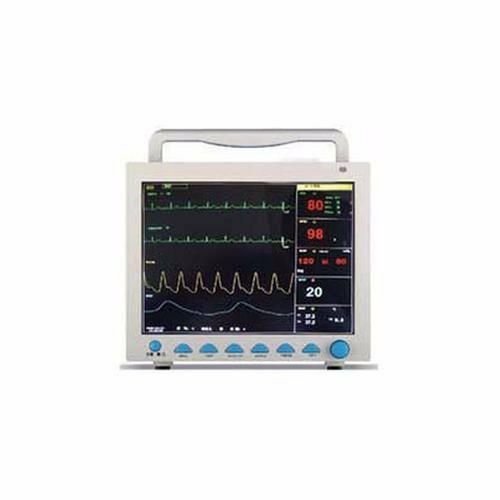

Multipara Patient Monitor 1210

EMI starts from Rs 3499* Only

High Resolution with screen size: 12.1″ colour TFT display

Light weight, compact and portable

Detachable rechargeable lithium battery

ECG waveforms of 7 lead display on the same screen

72-hours graphic and tabular trends of all the parameters

72 alarm events of all parameters recall

32 seconds full-disclosure waveform review

500 NIBP measurement data can be stored and recall

Data and waveforms color can be stored and recall

Arrhythmia analysis and S-T Segment analysis and its detection

Suitable for Adult, Paediatric and Neonatal Patients

Battery Backup: 2 hours

Optional: Nellcor SpO2, EtCO2, IBP, Printer, Central Monitoring software & cable (LAN networking or wireless)

Respiration

Method:RA-LL Impedance

Adult: 0 ~ 120 breathe / min

Paediatric/ Neonatal: 0 ~ 150 breathe / min

Apnea Alarm: 10 ~ 40 s

Pulse Rate (PR)

Range: 30 ~ 250 bpm Accuracy: ±3 bpm

Temperature

Range: 0 ~ 50°C

Accuracy: ±0.1°C

Multipara Monitor Specifications

Sp02

Measurement Range:0 ~ 100%

Accuracy 70 ~ 100%, ±2% & 0 ~ 69%,Unspecified

NIBP

Method: Oscillometric

Modes: Manual / Auto / Continuous

Auto Measure time: Adjustable

Measurement Range: 10 ~ 270 mmHg

ECG

Lead Mode: 3 lead or 5 lead

Lead Selection: I, II, III, avR, avL, avF and V

Heart Rate Range:

Adult: 35 ~ 300 bpm

Paediatric/ Neonatal: 15 ~ 300 bpm

ECG Waveform: 2 Channels

Accuracy: ±1 bpm or ±1%, whichever is greater

S-T segment detection

Measurement range: 0.2mV ~ 2.0mV
