Microsidd Microtouch

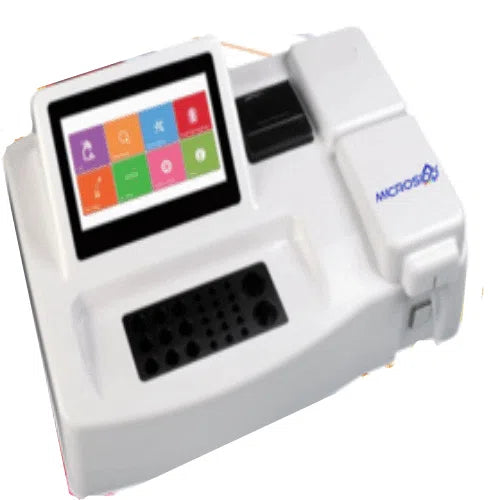

Touch Screen Semi Automatic Biochemistry Analyzer
Price Inclusive GST and transportation
5year Onsite Warranty
4 USB ports & 1 ethernet port
Computer System Data Enabled
300 programs , 20000 test result storage
1point end, 2 point end(Sample blank), Kinetics, Fixed-
time, Coagulation
7 inches true color touch screen 800*480 pixels
Full Specifications
Test Method : 1point end, 2 point end(Sample blank), Kinetics, Fixed-
time, Coagulation
Optics : 7 standard filters:340nm, 405nm, 450nm, 505nm, 546nm,
578nm,630nm.2 more for optional.
Lamp house : Long-life tungsten halogen lamp (6v/10w), auto-sleep
function.
Display : 7.0 TFT LCD with touch screen, 800 * 480 pixels.
Printer : Build-in the thermal printer, 57mm, printer paper.
Temperature : 25, 30, 37 and Room tempature. By means of peltier
elements.
flowcell capacity & optical path : 18ul, 10mm
Resolution : 0.0001Abs
Photometric range : 0.0000-4.0000 Abs
CPU : ARM Cortex-A8, 720M Hz.
Memory : DDR2 SDRAM : 1G bit
Flash : 256 MB;
Over 300 Programs, 200000 results can be stored.
Interface : 4USB Hosts, 1USB Slave, 1Ethernet port.
USB port (host) for keyboard, Mouse, Printer, U Disk, Barcode Reader etc.
USB Port (slave) for PC Connection(support PC Software control function).
Operational environment : Temparature : 10~30, Humaidity : 30% ~ 80%.
power requirement : wide power supply AC 100-240V , 50/60Hz.
Dimension : 400*300*160mm(L*W*H)
