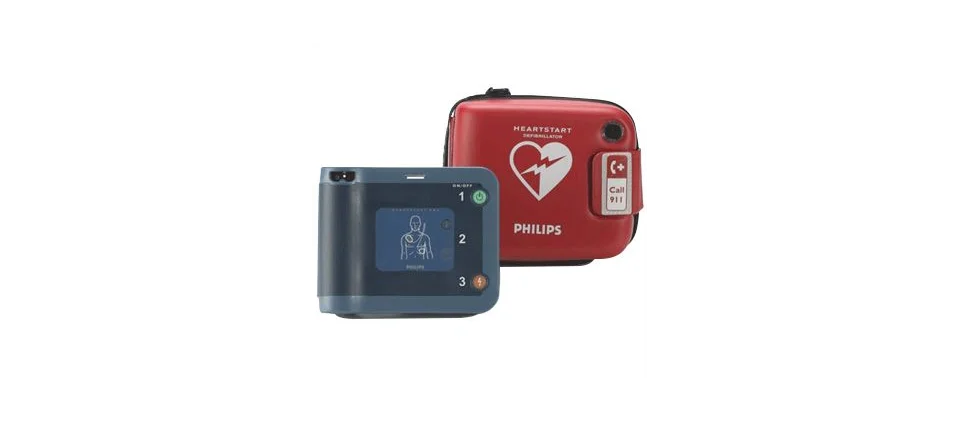

The HeartStart FRx defibrillator incorporates advanced Life Guidance features to help guide responders in treating the most common cause of sudden cardiac arrest. With clear, calm voice prompts and rugged design, HeartStart FRx is easy to set-up and use. On the scene with law enforcement, on the field with student athletes or on the job with employees, the HeartStart FRx defibrillator is the solution for treating SCA in environments and conditions too demanding for other defibrillators
| Sealing |
Waterjet proof IPX5 per IEC60529 Dust protected IPX5 per IEC60529
|
| EMI (Radiated/Immunity) |
CISPR II Group I Class B, IEC 61000-4-3, and IEC 61000-4-8
|
| Temperature |
Operating/Standby:32° - 122° F (0° - 50° C)
|
| Altitude |
0 to 15,000 feet
|
| Aircraft |
Device: RTCA/DO-160D;1997
|
| Crush |
500 pounds
|
| Vibration |
Operating: meets MILSTD 810F Fig.514.5C-17, random Standby: meets MILSTD 810F Fig.514.5C-18,swept sine.
|
| Model Number |
861304
|
| Waveform |
Truncated Exponential Biphasic. Waveform parameters adjusted as a function of each patient’s impedance.
|
| Therapy |
Adult defibrillation peak current: 32A (150J nominal) into a 50 ohm load. Pediatric defibrillation (with optional Infant/Child Key installed): 19A (50J nominal) into a 50 ohm load.
|
| Battery |
Typically 4 years when stored and maintained according to directions provided in Owner’s Manual. Standby life (after insertion):
|
| Protocol |
Protocol Device follows preconfigured settings. Defibrillation and CPR protocol can be customized using HeartStart Event Review or HeartStart Configure software.
|
| Quick Shock |
Able to deliver a shock after the end of a CPR interval, typically in eight seconds.
|
| Size |
2.4 x 7.1 x 8.9 inches (6 x 18 x 22 cm) H x D x W
|
| Weight |
With battery and pads case: 3.5 lbs (1.5 kg) Without battery or pads case: 2.6 lbs (1.2 kg)
|
