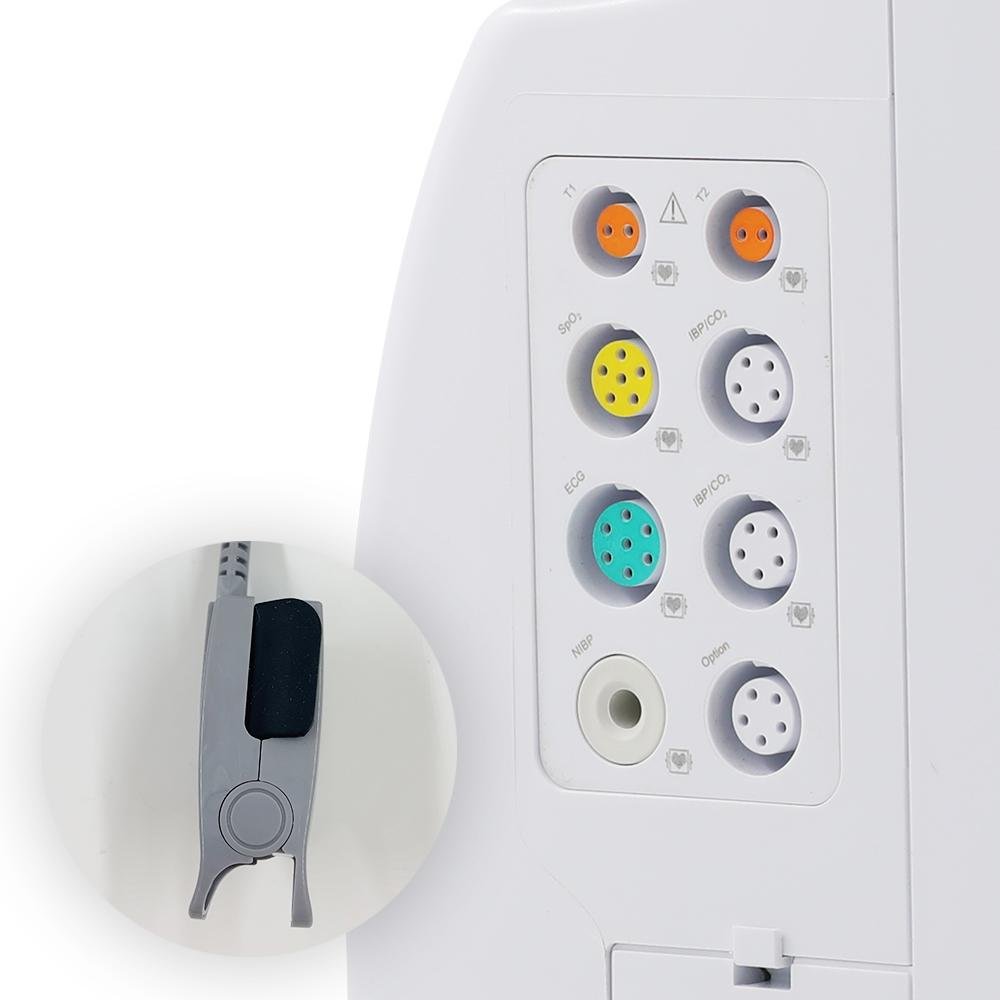

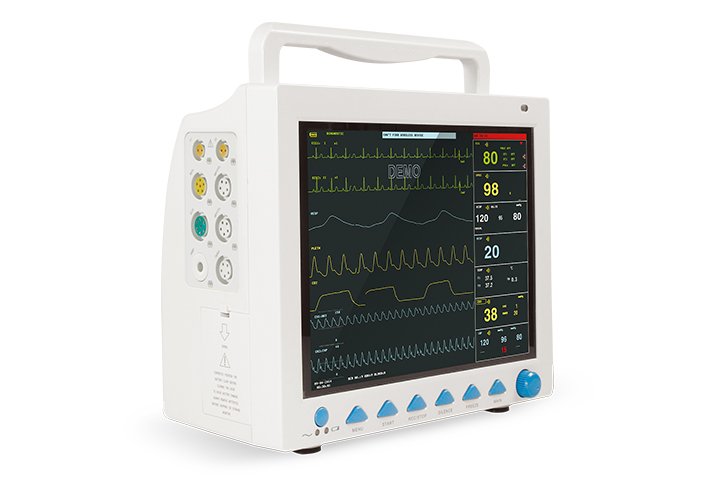

Contec Multipara Monitor CMS8000

CMS8000 patient monitor has abundant functions that can be used for clinical monitoring with adult, pediatric, neonate or veterinary. This device can monitor parameters such as ECG, RESP, NIBP, SpO2, and dual-channel TEMP, etc.
CMS800 monitor is power supplied by 100-240V～,50/60Hz, adopts 12.1” color TFT LCD displaying real-time date and waveform. Its a new model launched in 2021. Order online now!
CMS8000 patient monitor has abundant functions that can be used for clinical monitoring with adult, pediatrics, neonate or veterinary. This device can monitor parameters such as ECG, RESP, NIBP, SpO2, and dual-channel TEMP, etc.
Veterinary probes are also available. Please refer probe selection.

• 12.1” color TFT LCD displaying real-time date and waveform.
• It can synchronously display eight-channel waveform and full monitoring parameters equipped with an optional 48mm thermal recorder.
• Monitors parameters such as ECG, RESP, NIBP, SpO2, and dual-channel TEMP, etc.
• Its replaceable internal battery brings lot of convenient for patient moving.
• Optional: It can be connected to the central monitoring system via wire or wireless network to form a network monitoring system.
• Heart rate variability (HRV) analysis function.
• NIBP measurement mode: Manual/AUTO/STAT, storage for 4800-group NIBP data.
• Drug concentration calculation and titration table functions.
• Adopt digital SpO2 technology, anti-motion and anti-ambient light interference, and measurement can be performed under the circumstance of weak filling.
• Power supply – 100-240V～50/60Hz
• CE & FDA Approved

In the box:

• Monitor
• Power connector
• Adult/Neonatal cuff + cable (based on selection)
• ECG leads
• SpO2 probe
• Temperature probe
• User manual

Comparative Chart of Contec Patient Monitors:

Monitors

CMS-5100

CMS-6000

CMS-7000 PLUS

CMS-8000

AQUA-12

AQUA-15

NIBP	x	x	x	x	x	x
SpO2	x	x	x	x	x	x
Pulse Rate	x	x	x	x	x	x
Respiratory		x	x	x	x	x
Temperature	x	x	x	x	x	x
ECG		x	x	x	x	x

Probes :
Adult	Standard	Standard	Standard	Standard	Standard	Standard
Neonatal	Optional	Optional	Optional	Optional	Optional	Optional
Display	2.8” TFT LCD & LED	8” TFT LCD & LED	12.1 TFT LCD Touch Screen	12.1 TFT LCD	12.1” TFT LCD Optional: Touch Screen	15” TFT LCD Optional: Touch Screen

ECG Waveform Display

7 channel

7 channel with ECG step function

7 channel with cascade ECG waveform

5 channel

8 channel

ECG Input

RA; LA; RL; LL; V

I; II; III; avR; avL; avF; Vx; CAL

I; II; III; avR; avL; avF; Vx; CAL

RA; LA; RL; LL; V

RA; LA; RL; LL; V

Memory Type

Built-in Flash Memory

Built-in Flash Memory

Built-in Flash Memory

Built-in Flash Memory

Built-in Flash Memory

Built-in Flash Memory

Storage Capacity

Up to 2000 NIBP data and 78000 SpO2 data

Up to 4800-group NIBP data.

Up to 4800-group NIBP data.

Up to 4800-group NIBP data.

Up to 400 groups of NIBP list, 6000 secs of ECG & 60 alarms

Up to 400 groups of NIBP list, 6000 secs of ECG & 60 alarms

Data Connectivity (optional)

Connect to Central Monitoring System by 3G, WiFi or wired mode.

Connect to Central Monitoring System by 3G, WiFi or wired mode

Connect to Central Monitoring System by 3G, WiFi or wired mode

Connect to central monitoring system by Wire / Wireless

Connect to central monitoring system by Wire / Wireless

Alarms

Visual & Audio Alarms

Visual & Audio Alarms

Visual & Audio Alarms

Visual & Audio Alarms

Visual & Audio Alarms

Visual & Audio Alarms

Battery

Built-in, Up to 120 Mins

Built-in, Up to 120 Mins

Built-in, Up to 120 Mins

Built-in, Up to 120 Mins

Built-in, Up to 200 Mins

Built-in, Up to 200 Mins

Optional Configuration

ETCO2, 2-IBP, Thermal printer

ETCO2, 2-IBP, Thermal printer

ETCO2, 2-IBP, Thermal printer

ETCO2, 2-IBP, Thermal printer, Touch Screen, Nellcor SPO2

ETCO2, 2-IBP, Thermal printer, Touch Screen, Nellcor SPO2

Warranty	1 Year	1 Year	1 Year	1 Year	1 Year	1 Year
Certification	FDA & CE	FDA & CE	FDA & CE	FDA & CE	FDA & CE	FDA & CE
