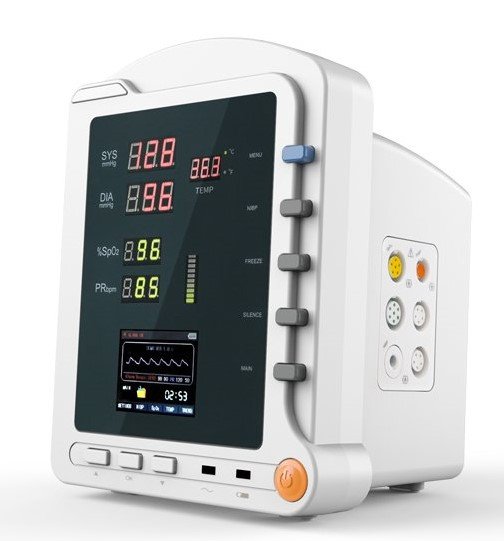

CONTEC CMS5100 Patient Monitor

All New CMS5100 Patient Monitor adopts Oculometry for NIBP measuring, Photoelectric Oxyhemoglobin Inspection Technology combining Capacity Pulse Scanning & Recording Technology for SpO2 measuring. Systolic Pressure(SYS), Diastolic Pressure(DIA), Mean Pressure(MAP), SpO2 and Pulse rate(PR) can be accurately measured. Compact appearance, comprehensive functions, simple and convenient operation, which is applicable for hospitals, community medical treatment and family.
CMS5100 Patient Monitor adopts Oscillometry for NIBP measuring, Photoelectric Oxyhemoglobin Inspection Technology combining Capacity Pulse Scanning & Recording Technology for SpO2 measuring. Systolic Pressure(SYS), Diastolic Pressure(DIA), Mean Pressure(MAP), SpO2 and Pulse rate(PR) can be accurately measured. Compact appearance, comprehensive functions, simple and convenient operation, which is applicable for hospitals, community medical treatment and family. Its a new model launched in 2021
Probe Options: Adult, Pediatric, Neonate or  Veterinary

• Built-in rechargeable Li-polymer battery for uninterrupted monitoring.
• Unique Flash memory, storage for up to 2000 NIBP data and 78000 SpO2 data.
• User-friendly interface with 2.8” (320×240) color TFT LCD and red and yellow highlight LED.
• Be applicable for adult, pediatric and neonatal for all-round monitoring, easy operation and high cost performance.
• Be applicable for medicine, surgery, operating room, ICU/CCU, emergency room, obstetrics and gynecology, pediatrics.
• Compact and flexible appearance, easy for carrying and be suitable for indoor and outdoor(in ambulance) monitoring.
• Convenient and quick in inquiring measurement data, review for NIBP trend graph within 24-hour and SpO2 and Pulse rate(PR) trend graph within 20-hour.
• Visual and audible alarm for Systolic Pressure(SYS), Diastolic Pressure(DIA), Mean Pressure(MAP), SpO2 and Pulse rate(PR), and upper and lower limit of alarm can be set.

PRODUCT SPECIFICATIONS
NIBP:

• Method: Oscillometry
• Mode: Manual/Auto/Continuous
• Measurement Range: 25-260mmHg
• Resolution: 1mmHg
• NIBP Accuracy: ±5mmHg
• Alarm: SYS/DIA/MAP

SpO2:

• Measurement range: 0%-100%
• Resolution: 1%
• Accuracy: ±2% (70%-100%) 0%-69% unspecified.
• Alarm range: 0-100%

Pulse Rate:

• Measurement range: 10 – 270
• Resolution: 1bpm
• Accuracy: ±2pm or ±2%

Temperature:

• Can measure temperature of adults, pediatric and neonatal patients.

Other Specifications:

• Dimension (LxWxH): 191 x 160 x 244 (mm)
• Net Weight: 1.5 kg

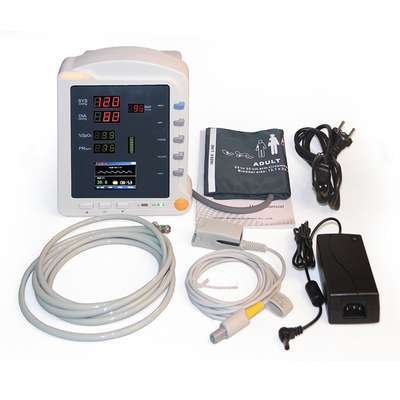

In The Box:

• Monitor
• Power connector and adaptor
• Adult/Neonatal cuff + cable (based on selection)
• SpO2 probe
• Temperature probe
• User manual

Comparative Chart of Contec Patient Monitors:

Monitors

CMS-5100

CMS-6000

CMS-7000 PLUS

CMS-8000

AQUA-12

AQUA-15

NIBP	x	x	x	x	x	x
SpO2	x	x	x	x	x	x
Pulse Rate	x	x	x	x	x	x
Respiratory		x	x	x	x	x
Temperature	x	x	x	x	x	x
ECG		x	x	x	x	x

Probes :
Adult	Standard	Standard	Standard	Standard	Standard	Standard
Neonatal	Optional	Optional	Optional	Optional	Optional	Optional
Display	2.8” TFT LCD & LED	8” TFT LCD & LED	12.1 TFT LCD Touch Screen	12.1 TFT LCD	12.1” TFT LCD Optional: Touch Screen	15” TFT LCD Optional: Touch Screen

ECG Waveform Display

7 channel

7 channel with ECG step function

7 channel with cascade ECG waveform

5 channel

8 channel

ECG Input

RA; LA; RL; LL; V

I; II; III; avR; avL; avF; Vx; CAL

I; II; III; avR; avL; avF; Vx; CAL

RA; LA; RL; LL; V

RA; LA; RL; LL; V

Memory Type

Built-in Flash Memory

Built-in Flash Memory

Built-in Flash Memory

Built-in Flash Memory

Built-in Flash Memory

Built-in Flash Memory

Storage Capacity

Up to 2000 NIBP data and 78000 SpO2 data

Up to 4800-group NIBP data.

Up to 4800-group NIBP data.

Up to 4800-group NIBP data.

Up to 400 groups of NIBP list, 6000 secs of ECG & 60 alarms

Up to 400 groups of NIBP list, 6000 secs of ECG & 60 alarms

Data Connectivity (optional)

Connect to Central Monitoring System by 3G, WiFi or wired mode.

Connect to Central Monitoring System by 3G, WiFi or wired mode

Connect to Central Monitoring System by 3G, WiFi or wired mode

Connect to central monitoring system by Wire / Wireless

Connect to central monitoring system by Wire / Wireless

Alarms

Visual & Audio Alarms

Visual & Audio Alarms

Visual & Audio Alarms

Visual & Audio Alarms

Visual & Audio Alarms

Visual & Audio Alarms

Battery

Built-in, Up to 120 Mins

Built-in, Up to 120 Mins

Built-in, Up to 120 Mins

Built-in, Up to 120 Mins

Built-in, Up to 200 Mins

Built-in, Up to 200 Mins

Optional Configuration

ETCO2,  2-IBP, Thermal printer

ETCO2,  2-IBP, Thermal printer

ETCO2,  2-IBP, Thermal printer

ETCO2,  2-IBP, Thermal printer, Touch Screen, Nellcor SPO2

ETCO2,  2-IBP, Thermal printer, Touch Screen, Nellcor SPO2

Warranty	1 Year	1 Year	1 Year	1 Year	1 Year	1 Year
Certification	FDA & CE	FDA & CE	FDA & CE	FDA & CE	FDA & CE	FDA & CE

FAQS:
Do we get both adult and neonatal probes with the Contec patient monitor?
Inside the box in a standard pack only adult probe comes, but there is an option you can select any of the required probes from adult, pediatric and neonatal. Also, you will have the option to take 2 or 3 probes altogether with the additional charges.
What is the display size, and battery backup?
The screen size is 2.8 inches with high brightness TFT LCD display and the battery backup is 4-6 hrs approx.
Can it be used to take the temperature?
Yes, you are given a temperature probe using which you can record the temperature.
How many days of warranty does it have on contec patient monitor?
The Contec patient monitor has a 1-year warranty.
