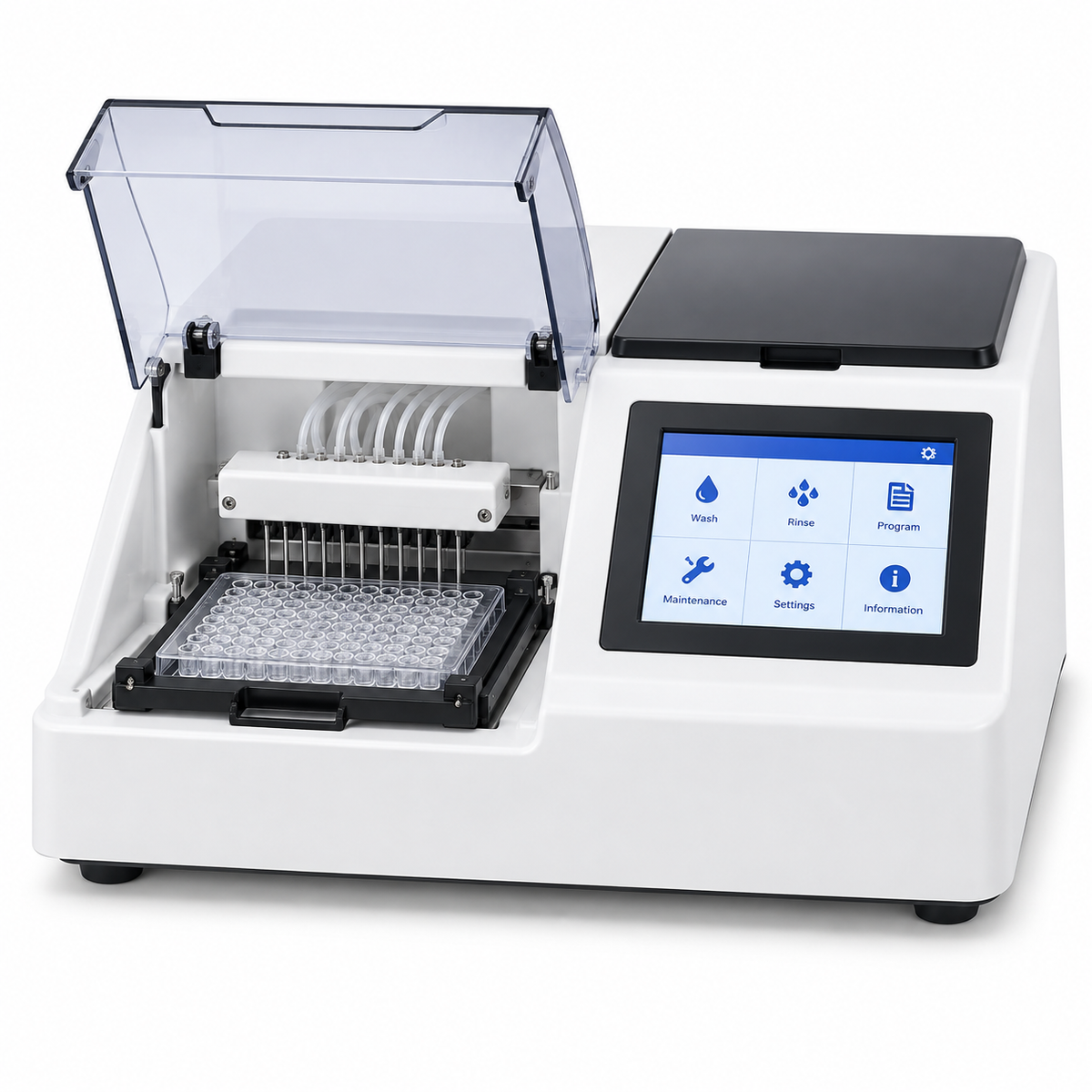

The Athenese ALTA ELISA Microplate Washer is a professional laboratory instrument designed for automated washing of ELISA microplates and strips during routine immunoassay workflows.
Proper washing is a critical part of ELISA testing because unbound reagents must be removed between reaction steps without disturbing the specific antigen-antibody complexes retained in the wells.
The ALTA washer provides programmable washing, aspiration, dispensing, soaking and plate-handling functions to help laboratories achieve more consistent ELISA wash cycles compared with purely manual washing.
It is suitable for professional use in diagnostic laboratories, pathology laboratories, hospital laboratories, blood banks, serology departments, medical colleges and other ELISA testing facilities.
Brand: Athenese dx
Product Name: ALTA ELISA Microplate Washer
Product Type: ELISA Plate Washer / Microplate Washer
Category: Laboratory Equipment
Subcategory: ELISA Washer
Application: Automated ELISA Plate Washing
Plate Format: 96-Well Microplates / 8-Well Strips
Manifold: 8-Way Autoclavable Manifold
Dispensing Volume: Programmable up to 500 µL
Residual Volume: <2 µL
Aspiration: Continuous Aspiration
Wash Bottle: 2 L
Rinse Bottle: 2 L
Waste Bottle: 2 L with Audible Full Warning
Memory: 100 Open Programs / Channels
Washing Modes: Plate Wash, Strip Wash, Bottom Wash, Overflow Wash, Rinsing, Priming, Disinfect
Bottom Detection: Automatic
Collision Prevention: Yes
Soak Time: Programmable
Wash Cycles: Programmable
Timers: 2 Individually Programmable Timers
Intended Use: Professional Laboratory Use
Seller: Microsidd India
Location: RT Nagar, Bengaluru, Karnataka, India
The ALTA ELISA Washer is a programmable microplate washing system used during ELISA assay processing.
After reagents and specimens are incubated in ELISA wells, the plate must usually be washed to remove unbound material.
The washer automates this step by:
This helps standardise a stage of ELISA testing that can otherwise be highly operator-dependent.
The ALTA washer is equipped with an 8-way manifold designed for washing strips and microplates.
The manifold is removable and intended for routine maintenance and cleaning.
The instrument can wash a single strip of 8 wells, making it practical for laboratories that do not always process a full plate.
Dispensing is programmable up to:
500 µL
depending on the assay requirement.
The listed residual volume is:
<2 µL
helping reduce carryover of residual liquid after aspiration.
The washer uses continuous aspiration while dispensing to help reduce overflow during the washing process.
The ALTA washer incorporates automatic bottom detection to help position the manifold appropriately for compatible well geometries.
The instrument includes collision-prevention functionality intended to reduce the risk of the manifold contacting or scratching the well bottom.
Soak time can be programmed according to the specific ELISA protocol.
The number and sequence of wash cycles can be configured to match different reagent-kit requirements.
The ALTA ELISA washer supports several plate-washing and maintenance functions:
Plate Wash
For complete plate washing.
Strip Wash
For individual ELISA strips.
Bottom Wash
For washing closer to the bottom of compatible wells.
Overflow Wash
For high-volume or overflow-style washing protocols.
Rinsing
For flushing the system.
Priming
For preparing the fluid pathway before use.
Disinfect Mode
For laboratory maintenance according to the manufacturer’s procedure.
| Specification | Details |
|---|---|
| Brand | Athenese dx |
| Model | ALTA ELISA Washer |
| Instrument Type | ELISA Microplate Washer |
| Manifold | 8-Way Autoclavable |
| Plate Compatibility | 96-Well Plates / 8-Well Strips |
| Dispensing | Programmable up to 500 µL |
| Aspiration | Continuous |
| Residual Volume | <2 µL |
| Wash Bottle | 2 L |
| Rinse Bottle | 2 L |
| Waste Bottle | 2 L |
| Waste Alarm | Audible Full Warning |
| Memory | 100 Programs / Channels |
| Display | 16-Digit Alphanumeric Fluorescent Display |
| Liquid Contact Materials | Silicone, Stainless Steel, Derlin |
| Wash Modes | Plate, Strip, Bottom, Overflow |
| Maintenance Modes | Rinsing, Priming, Disinfect |
| Timers | 2 Individually Programmable |
| Bottom Detection | Automatic |
| Collision Prevention | Yes |
| Use | Professional Laboratory Use |
Washing is one of the most important procedural steps in ELISA.
If unbound conjugate or other reagent remains in the wells, background optical density can increase.
If washing is too aggressive or incorrectly programmed, assay performance may also be affected.
A programmable washer helps laboratories control:
The actual settings must always follow the specific ELISA kit IFU.
A typical washing sequence may include:
Exact washing parameters should be set according to the assay protocol rather than using one common setting for all kits.
These instruments perform different parts of the ELISA workflow.
| Feature | ALTA ELISA Washer | ALTA ELISA Reader |
|---|---|---|
| Main Function | Washes microplate wells | Measures optical density |
| Wash Buffer Dispensing | Yes | No |
| Aspiration | Yes | No |
| Measures Absorbance | No | Yes |
| Optical Filters | No | Yes |
| Used During Assay | Yes | Primarily at reading stage |
| Used Together | Often | Often |
For a complete ELISA setup, the ALTA Washer + ALTA Reader can form a practical equipment pair.
The ALTA washer may be used with compatible ELISA protocols for:
Compatibility depends on the plate format and washing instructions specified by the reagent manufacturer.
The ALTA ELISA Washer is intended for trained professionals working in:
This instrument is not intended for home use.
The ALTA washer can help improve laboratory workflow through:
The instrument uses dedicated fluid bottles for routine operation.
Wash Bottle: 2 L
Rinse Bottle: 2 L
Waste Bottle: 2 L
The waste bottle includes an audible full-warning function.
Routine maintenance should follow the manufacturer’s current instructions.
General good laboratory practice includes:
Do not dismantle internal components unless performed by authorised personnel.
Install the instrument on a stable laboratory bench away from:
Ensure sufficient space around the unit for fluid bottles and tubing.
During transport:
Use the ALTA ELISA Reader for optical-density measurement after completion of compatible ELISA assays.
https://microsidd.com/collections/elisa-range
https://microsidd.com/collections/blood-bank-range
https://microsidd.com/collections/chemicals-liquids
Microsidd India supplies professional diagnostic equipment, ELISA kits, blood-bank reagents and laboratory consumables to professional healthcare customers.
Benefits include:
✓ ELISA reader and washer options in one catalogue
✓ ELISA kits available for related testing workflows
✓ Blood-bank and serology products available
✓ Professional laboratory-focused catalogue
✓ Technical product information before ordering
✓ GST invoice where applicable
✓ Bengaluru-based support
✓ Institutional supply support subject to availability
✓ Online ordering across serviceable locations in India
Microsidd India supplies ELISA plate washers and laboratory equipment in Bengaluru and serves professional customers across serviceable locations in India.
Professional buyers searching for:
ELISA washer Bangalore
microplate washer Bengaluru
ALTA ELISA washer India
Athenese ELISA washer
96-well plate washer Bangalore
blood bank ELISA equipment near me
order through Microsidd.com subject to stock and serviceability.
Business Name: Microsidd India
Address: #09, Green Chambers, 14th Cross, RT Nagar, Bengaluru – 560032, Karnataka, India
Phone / WhatsApp: +91 63667 72288
Email: support@microsidd.com
Website: https://microsidd.com
Working Hours: Monday to Saturday, 10:00 AM – 6:00 PM IST
https://www.youtube.com/channel/UCun9gCID17Z5kK65W6JtIdg?sub_confirmation=1
https://whatsapp.com/channel/0029Va5lCoi1nozBZBL1gx3P
It is a programmable microplate washer designed for professional ELISA laboratory workflows.
The old Microsidd listing identifies it as an Athenese dx ALTA ELISA Washer.
Yes, it is designed for microplate washing and can also wash individual strips.
Yes. It can wash a single strip of 8 wells.
An 8-way autoclavable manifold.
Dispensing is programmable up to 500 µL.
The legacy specification lists <2 µL.
Yes.
Yes. This is intended to help prevent manifold contact with the well bottom.
Yes.
Yes.
Plate wash, strip wash, bottom wash, overflow wash, rinsing, priming and disinfect.
Wash, rinse and waste bottles are each listed as 2 litres.
Yes. There is an audible waste-bottle-full warning.
The old specification lists 100 open programs/channels.
Yes, where the assay uses a compatible microplate and washing protocol.
Yes, subject to the kit IFU.
Yes, subject to the specific washing protocol.
No.
An ELISA reader measures absorbance. This instrument performs washing.
No. It is professional laboratory equipment.
This product is non-returnable and non-exchangeable.
Please verify the brand, model, plate compatibility, washing-manifold requirement, dispensing volume, assay methodology, laboratory workflow and instrument specifications before placing your order.
For laboratory equipment, customers should specifically verify the required methodology, compatible ELISA kit, microplate format, washing protocol, laboratory infrastructure and intended application before ordering.
Genuine cases involving an incorrect product received will be handled separately according to Microsidd.com's applicable policies and applicable law.
An original, continuous, unedited and uncut unboxing video is compulsory for making any claim regarding an incorrect product received.
The Athenese ALTA ELISA Microplate Washer is intended for professional laboratory use.
The instrument should be installed, programmed, operated, cleaned and maintained by appropriately trained personnel according to the manufacturer’s current operating instructions, ELISA kit IFUs, laboratory SOPs and quality-control procedures.
Incorrect wash volume, wash cycles, soak time or aspiration settings may affect assay performance. Washing parameters should therefore be selected according to the individual ELISA kit protocol.
