Diamond LED 141 Deluxe Mercury-Free BP Apparatus

The Diamond LED 141 Blood Pressure Apparatus, model BPDG 141, is a professional mercury-free manual blood pressure monitoring system from Diamond. It combines the familiar working principle of a traditional clinical column-type BP apparatus with an electronic LED pressure column, numeric pressure display and pulse-rate display.

Instead of using a physical mercury column, the Diamond BPDG 141 electronically emulates the mercury column, providing a mercury-free alternative for professional blood-pressure measurement. It uses the traditional Korotkoff sound / auscultatory method, with BP measurement performed using a stethoscope.

The cuff is inflated manually using a rubber bulb, while pressure reduction is controlled through a hand-held pressure-control valve. This allows trained healthcare professionals to retain direct control over inflation and deflation during measurement.

As the Deluxe model in Diamond's LED BP apparatus range, the BPDG 141 also provides dual power operation using battery or USB adaptor, a deluxe cuff, pulse-rate display and new sensor technology.

It is particularly suitable for doctors, clinics, hospitals, nursing facilities, diagnostic centres and other professional healthcare environments looking for a mercury-free alternative to a conventional mercurial BP apparatus.

---

Quick Product Information

These specifications are reported specifically for the Diamond BPDG 141.

---

What is the Diamond LED 141 Used For?

The Diamond LED 141 BPDG 141 is designed for manual, non-invasive measurement of arterial blood pressure using the auscultatory method.

It is suitable for:

• Measuring systolic blood pressure
• Measuring diastolic blood pressure
• Professional manual BP monitoring
• Routine patient BP assessment
• Doctor's clinics
• Hospitals and nursing facilities
• Diagnostic centres
• Medical examination rooms
• Professional healthcare environments
• Facilities replacing traditional mercury BP apparatuses
• Healthcare professionals who prefer manual auscultatory measurement

The BPDG 141 also provides a pulse-rate display, adding useful measurement information to the electronic display.

---

Key Benefits of Diamond LED 141

1. Mercury-Free Technology

The BPDG 141 eliminates the need for a physical mercury column.

Instead, the instrument electronically emulates the mercury column, giving healthcare professionals a familiar visual pressure reference without mercury.

This is one of the most important selling points of the product and should appear prominently near the beginning of your Shopify description.

2. Electronic LED Pressure Column

The LED column provides a clear electronic representation of cuff pressure.

Its specified pressure-display range is:

LED column: 0–280 mmHg

with a resolution of:

2 mmHg.

3. Separate Numeric Pressure Display

In addition to the LED pressure column, the Deluxe 141 provides a digital numeric pressure readout.

The numeric display has a specified range of:

0–300 mmHg

with:

1 mmHg resolution.

This combination of column-style and numerical pressure information is a major differentiating feature.

4. Pulse Rate Display

Unlike a conventional mercury-column sphygmomanometer, the Diamond BPDG 141 includes a pulse-rate display.

Published specifications state pulse accuracy of ±5%.

5. Auscultatory / Korotkoff Sound Method

The Diamond LED 141 retains the traditional professional BP measurement technique.

Blood pressure is measured using auscultation with a stethoscope, based on Korotkoff sounds.

This is why the product should not be described as a one-touch automatic digital BP monitor.

6. Manual Inflation & Controlled Deflation

The cuff is pressurised manually using a rubber inflation bulb.

Deflation is controlled through a hand-held pressure-control valve.

This provides the operator with direct control during auscultatory BP measurement.

7. Dual Power Operation

The Deluxe BPDG 141 supports:

Battery operation + USB adaptor operation.

This is an important advantage for clinics because the unit does not depend exclusively on one power source.

8. Deluxe Cuff

The BPDG 141 package is specified with a Deluxe cuff, with a reported cuff dimension of approximately 14.5 × 51 cm.

9. New Sensor Technology

Published product specifications identify New Sensor Technology as one of the features of the BPDG 141 Deluxe.

10. Good Calibration Stability

The product is promoted with good calibration stability and is described as calibrated against a standard U-tube mercury manometer.

---

Product Features

• Diamond professional BP apparatus
• Model BPDG 141
• Deluxe LED model
• Mercury-free design
• Electronically emulates a mercury column
• Electronic LED pressure column
• Separate numeric pressure display
• Pulse-rate display
• New sensor technology
• Auscultatory BP measurement
• Uses Korotkoff sounds
• Measurement performed with stethoscope
• Manual cuff inflation
• Rubber inflation bulb
• Hand-controlled pressure release valve
• Deluxe cuff
• Dual battery and USB-adaptor power
• Low power consumption
• Good calibration stability
• Environment-friendly mercury-free design
• Suitable for professional and clinical BP monitoring

---

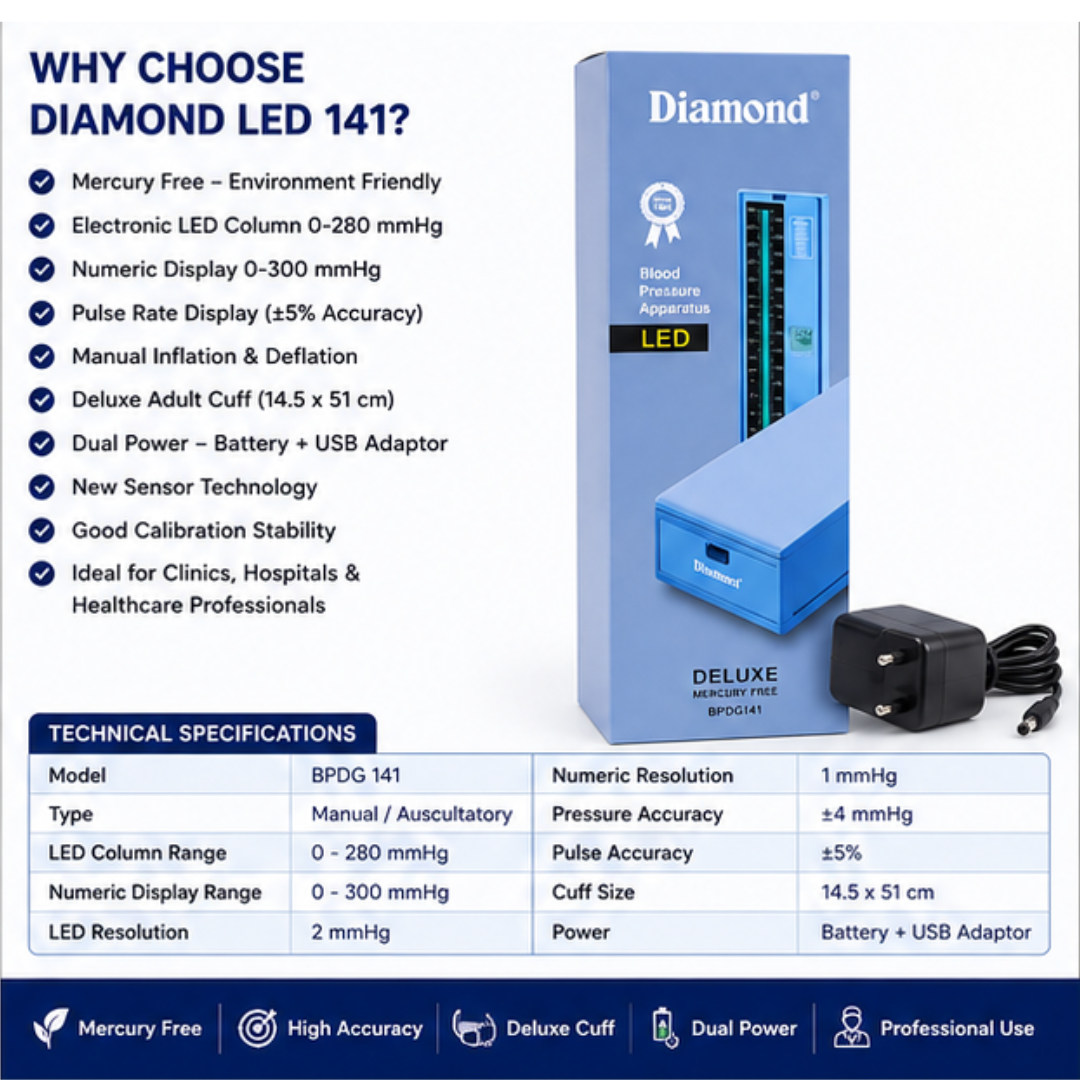

Technical Specifications

These model-specific technical figures come from published BPDG 141 specifications.

---

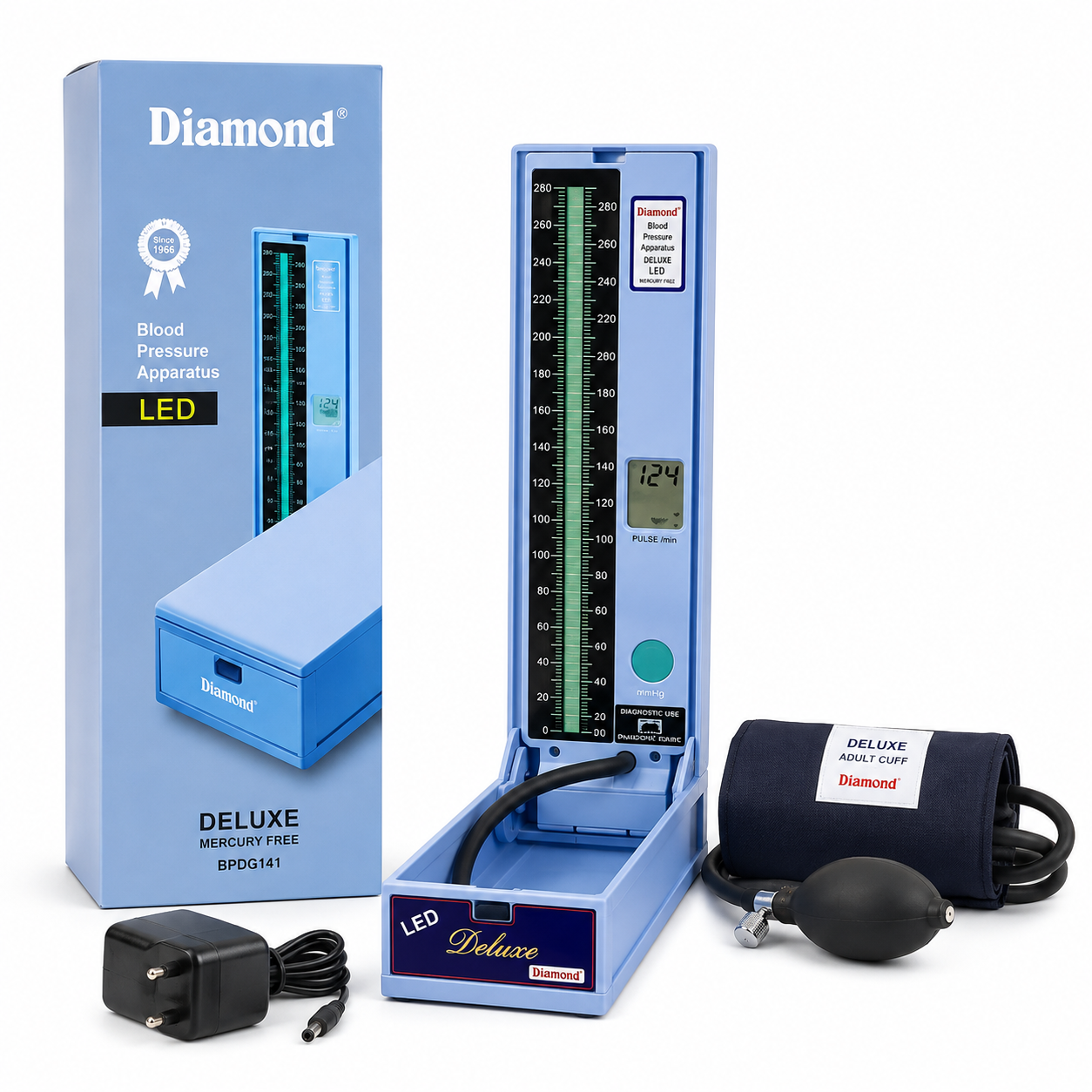

What's Included in the Pack?

Published BPDG 141 package information specifies:

1 × Diamond BPDG 141 Main Unit
1 × Deluxe Cuff
Battery
USB Adaptor

I recommend adding this as a separate “What's in the Box?” section on Shopify because it gives Google Shopping and AI retrieval systems a much clearer understanding of exactly what the customer receives.

---

How to Use Diamond LED 141 BP Apparatus

Because this is a professional auscultatory instrument, it should be used according to the supplied manufacturer instructions and appropriate BP-measurement technique.

The general workflow is:

1. Position the cuff correctly around the patient's upper arm.

2. Position the stethoscope according to standard auscultatory BP-measurement practice.

3. Inflate the cuff manually using the rubber bulb.

4. Observe pressure using the LED column and numeric display.

5. Slowly release cuff pressure through the hand-held control valve.

6. Listen for Korotkoff sounds through the stethoscope.

7. Determine systolic and diastolic blood pressure according to standard auscultatory measurement technique.

This manual technique is fundamentally different from an automatic oscillometric home BP monitor.

---

Diamond LED 141 vs Diamond LED 041

This is an especially useful comparison to add because Microsidd sells both models.
