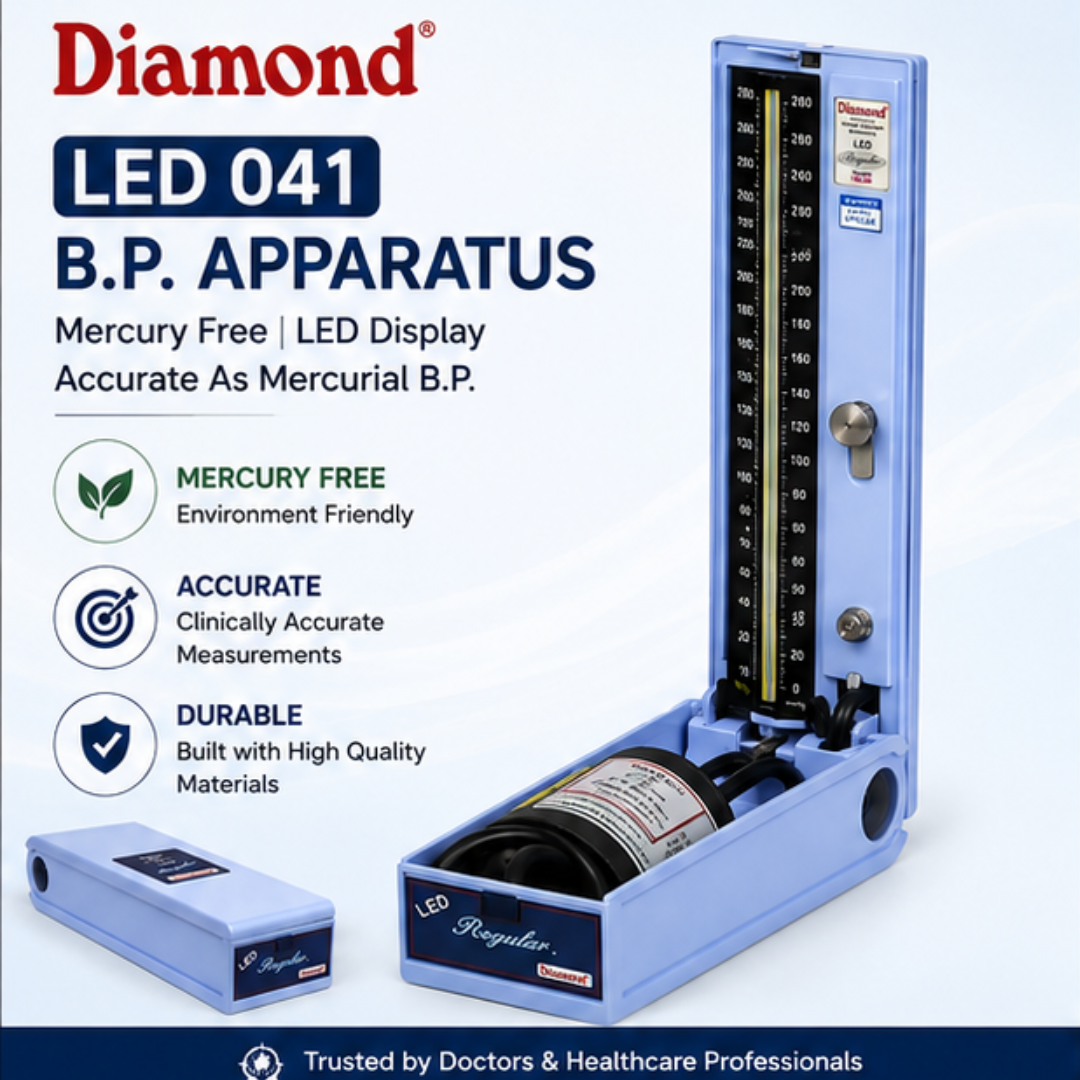

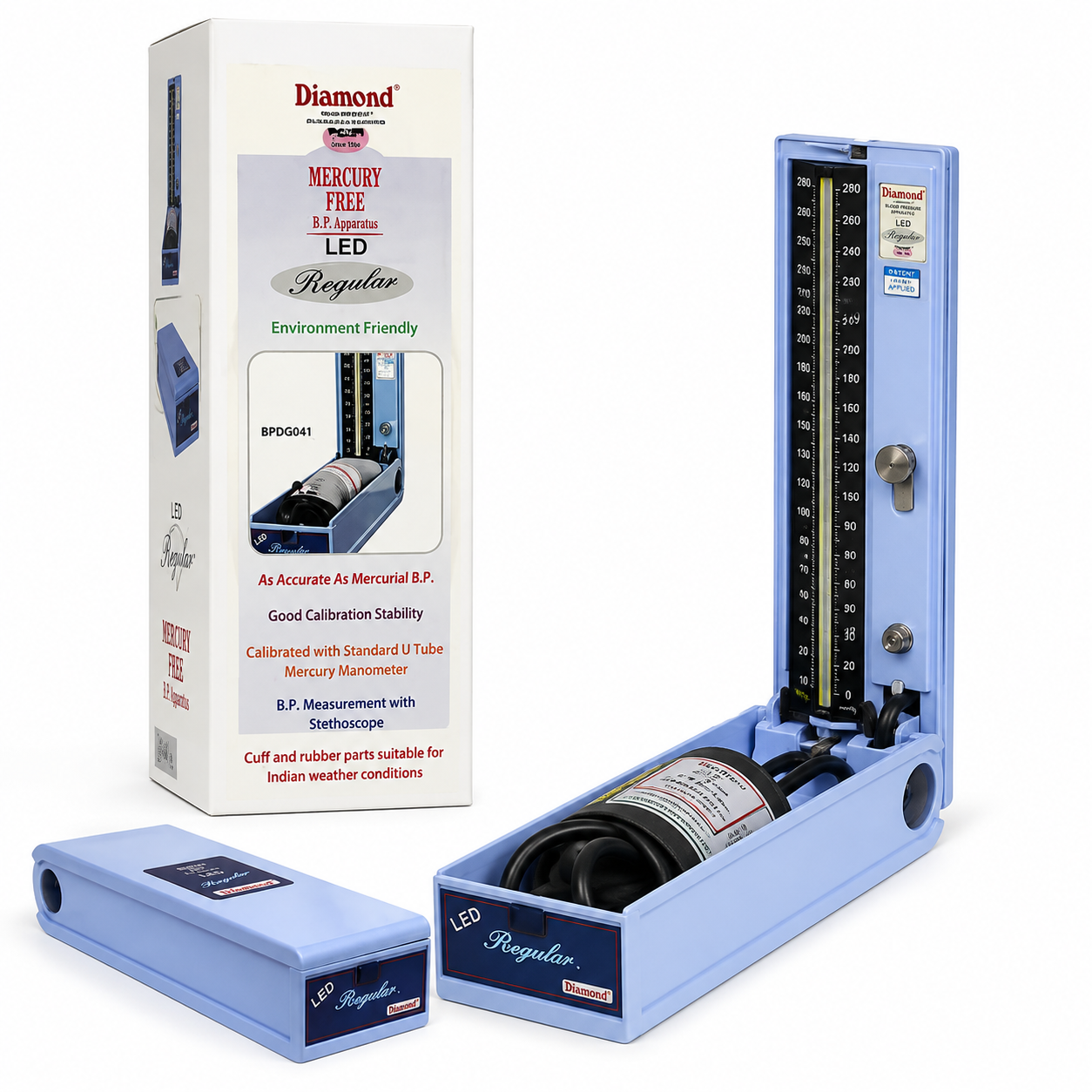

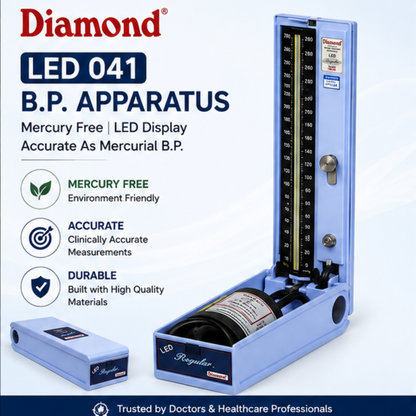

The Diamond LED 041 Blood Pressure Apparatus, model BPDG 041, is a professional manual blood-pressure measuring system designed to provide the familiar functionality of a traditional column-type BP apparatus while replacing mercury with an electronic LED pressure column.
Unlike a fully automatic digital BP monitor, the Diamond LED 041 is an auscultatory blood pressure apparatus. The cuff is inflated manually using the rubber bulb, pressure is controlled using the hand-operated valve, and blood pressure is determined by auscultation using a stethoscope.
The instrument combines an LED pressure column with a numeric pressure display, allowing healthcare professionals to view cuff pressure electronically while following a measurement technique similar to a traditional clinical BP apparatus.
Its mercury-free design makes the Diamond BPDG 041 particularly useful for clinics, hospitals, nursing facilities and healthcare professionals looking to move away from conventional mercury sphygmomanometers while retaining manual auscultatory BP measurement. The model has also been described as electronically emulating a mercury column.
| Specification | Diamond LED 041 |
|---|---|
| Brand | Diamond |
| Model | BPDG 041 |
| Common Name | Diamond LED 041 |
| Product Type | Manual Blood Pressure Apparatus |
| Measurement Method | Auscultation |
| Pressure Display | Electronic LED Column + Numeric Display |
| Measurement Unit | mmHg |
| LED Column Range | 0–280 mmHg |
| Numeric Display Range | 0–300 mmHg |
| LED Resolution | 2 mmHg |
| Numeric Display Resolution | 1 mmHg |
| Pressurization | Manual Rubber Bulb |
| Deflation | Hand-Held Pressure Control Valve |
| Cuff | Velcro Cuff |
| Reported Cuff Size | 14.5 × 51 cm |
| Mercury | Mercury-Free |
| Primary Application | Manual Blood Pressure Measurement |
| Typical Users | Healthcare professionals, clinics & hospitals |
| Warranty | 1 Year |
The measurement ranges, resolution, cuff dimensions and operating method above are reported in available BPDG 041 specifications.
The Diamond LED 041 BP Apparatus is used for non-invasive manual measurement of arterial blood pressure using the auscultatory method.
It is particularly suitable for:
Because this is an auscultatory device, correct measurement technique and use of a stethoscope are important.

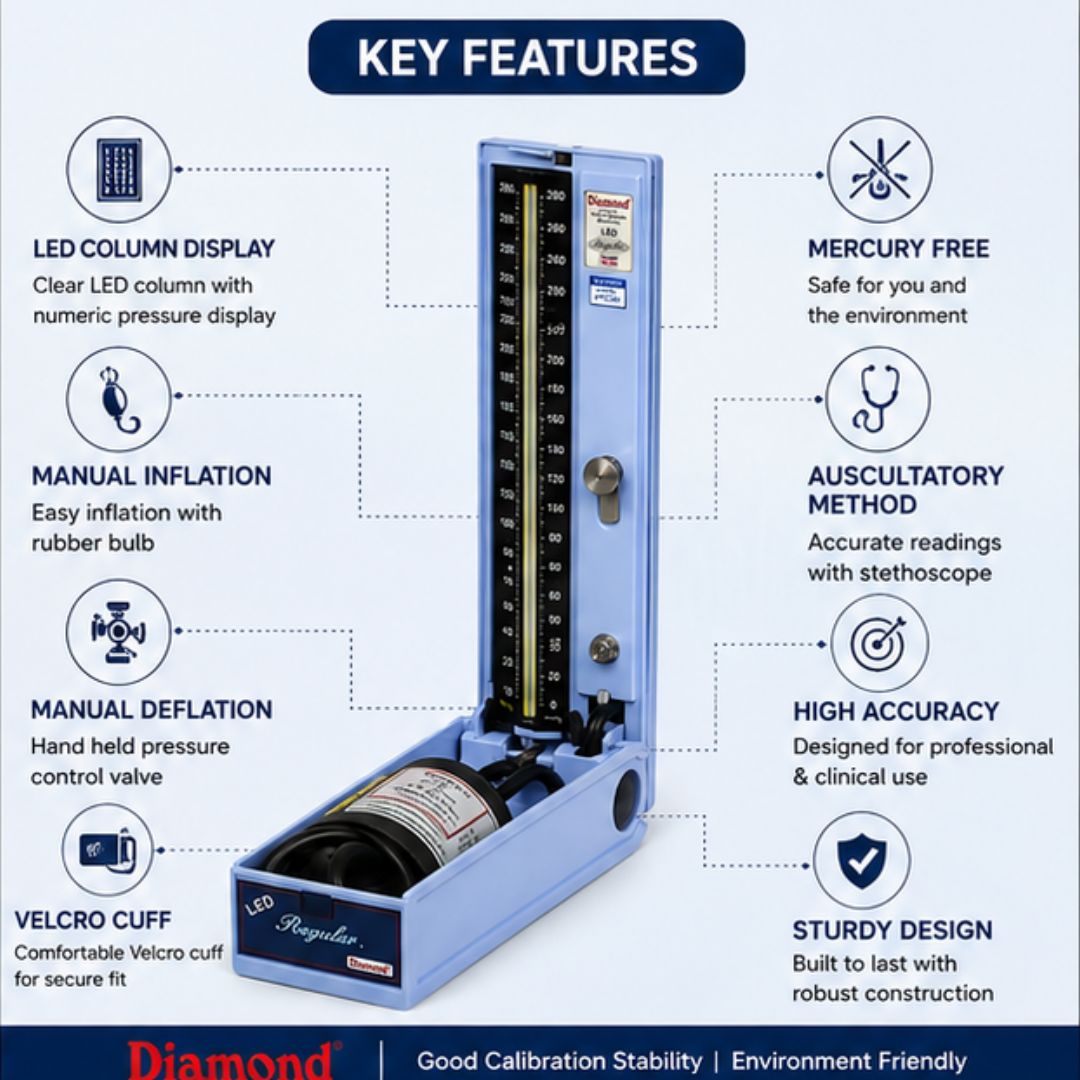

One of the most important advantages of the Diamond BPDG 041 is its mercury-free design.
Instead of a physical mercury column, the device electronically represents pressure through an LED column, providing a familiar column-style reference without mercury.
The electronic column provides a visual pressure indication resembling the traditional column format familiar to healthcare professionals.
This makes the model particularly interesting for users transitioning from conventional mercury BP apparatuses.
In addition to the LED column, available specifications describe a numeric pressure display.
The LED column provides 2 mmHg resolution, while the numeric display provides 1 mmHg resolution.
The Diamond LED 041 retains the traditional auscultatory method using a stethoscope rather than automatically calculating blood pressure like a consumer digital monitor.
This makes it particularly relevant to trained healthcare users who prefer manual BP measurement.
Cuff pressurization is performed manually using a rubber inflation bulb.
This gives the operator direct control over cuff inflation.
Deflation is controlled through a hand-held pressure-control valve, allowing the operator to control the rate of pressure reduction during auscultation.
The model is supplied with a Velcro cuff for secure positioning on the patient's upper arm. The published specification lists a cuff size of approximately 14.5 × 51 cm.
The professional manual measurement format makes the Diamond LED 041 particularly suitable for clinics and hospitals.
| Technical Parameter | Specification |
|---|---|
| Product Name | Diamond LED 041 Blood Pressure Apparatus |
| Brand | Diamond |
| Model | BPDG 041 |
| Type | Manual / Auscultatory BP Apparatus |
| Display Technology | Electronic LED Column + Numeric Display |
| Measurement Unit | mmHg |
| Measurement Method | Auscultation with Stethoscope |
| LED Pressure Range | 0–280 mmHg |
| Numeric Display Range | 0–300 mmHg |
| LED Resolution | 2 mmHg |
| Numeric Resolution | 1 mmHg |
| Pressure Accuracy | ±4 mmHg* |
| Pressurization | Manual using Rubber Bulb |
| Deflation | Manual Pressure-Control Valve |
| Cuff Type | Velcro |
| Reported Cuff Size | 14.5 × 51 cm |
| Operating Temperature | +10°C to +40°C* |
| Storage Temperature | -20°C to +60°C* |
| Mercury-Free | Yes |
| Application | Professional Blood Pressure Measurement |
| Warranty | 1 Year |
*These figures are reported in published BPDG 041 specifications.
The Diamond LED 041 should not be described on your Shopify page as working like an automatic digital BP machine.

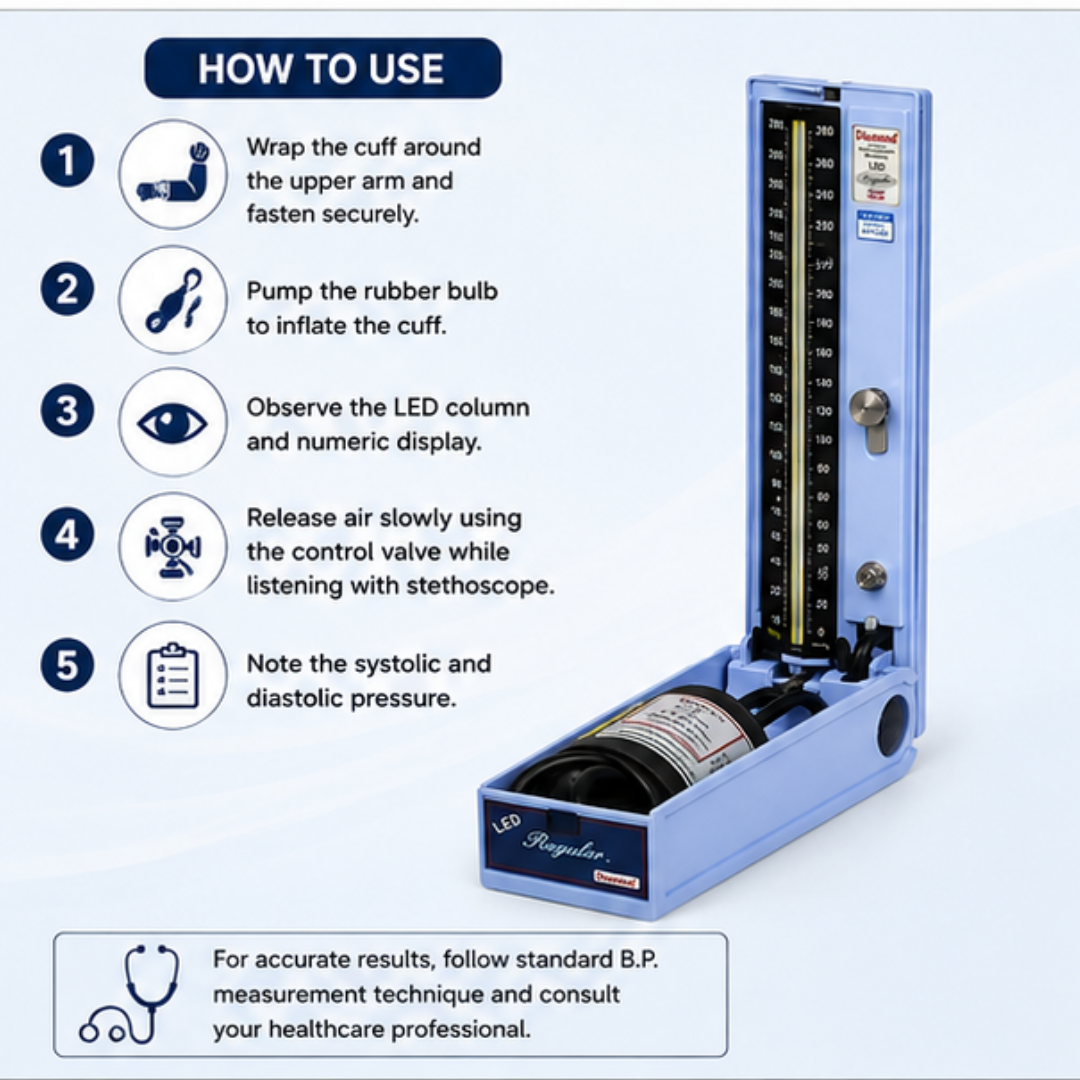

The basic measurement workflow is:
1. Position the cuff correctly around the patient's upper arm.
2. Position the stethoscope according to standard auscultatory BP-measurement technique.
3. Inflate the cuff manually using the rubber bulb.
4. Observe cuff pressure on the electronic LED/numeric display.
5. Slowly release pressure using the hand-operated control valve while listening through the stethoscope.
6. Determine systolic and diastolic pressure from the Korotkoff sounds according to standard auscultatory technique.
The manufacturer instructions supplied with the product should always take priority over a general description.
This comparison section could be particularly useful for SEO and AI/GEO because it explains what the LED 041 actually is.
| Feature | Diamond LED 041 | Traditional Mercury BP Apparatus |
|---|---|---|
| Measurement Method | Manual Auscultatory | Manual Auscultatory |
| Pressure Column | ✅ Electronic LED | Mercury Column |
| Mercury Used | ✅ No | Yes |
| Stethoscope Required | ✅ Yes | Yes |
| Manual Inflation | ✅ Yes | Yes |
| Manual Deflation | ✅ Yes | Yes |
| Numeric Pressure Display | ✅ Yes | ❌ No |
| Column-Style Pressure Reference | ✅ Electronic | Physical Mercury |
| Suitable for Professional Use | ✅ Yes | Yes |
| Mercury Handling Concern | ✅ Avoided | Present |
| Familiar Manual Technique | ✅ Yes | Yes |
This is a much more meaningful comparison for this product than comparing it directly with an automatic home BP monitor.
| Feature | Diamond LED 041 | Typical Automatic BP Monitor |
|---|---|---|
| Measurement Method | Manual Auscultation | Automatic Oscillometric |
| User Inflates Cuff | ✅ Yes | ❌ Usually Automatic |
| Stethoscope Required | ✅ Yes | ❌ No |
| Operator Controls Deflation | ✅ Yes | ❌ Automatic |
| Electronic Display | ✅ Yes | ✅ Yes |
| LED Column | ✅ Yes | ❌ Usually No |
| Mercury-Free | ✅ Yes | ✅ Yes |
| Professional Technique Required | Higher | Lower |
| Typical Application | Clinical / Professional | Home / General Monitoring |
| Similarity to Traditional Mercury Technique | High | Low |
The Diamond LED 041 is particularly suitable for healthcare professionals and institutions that prefer manual auscultatory blood-pressure measurement but want a mercury-free pressure display.
Potential users include doctors, nurses and other appropriately trained healthcare professionals, as well as clinics, hospitals, nursing facilities and diagnostic centres.
For an individual who simply wants to press a button and obtain an automatic home BP reading, a fully automatic digital upper-arm monitor would generally be a more appropriate product category.
The Diamond LED 041, model BPDG 041, is a mercury-free manual blood-pressure apparatus using an electronic LED pressure column and numeric display.
No. This distinction is important. It uses an electronic display, but blood-pressure measurement is performed using the manual auscultatory method.
Yes. Available product information describes the BPDG 041 as electronically emulating a mercury column rather than using a conventional mercury column.
Yes. Published specifications state that measurement is performed by auscultation with a stethoscope.
No. Pressurization is performed manually using the rubber bulb.
Pressure is released manually using the hand-held pressure-control valve.
Published specifications list 0–280 mmHg for the LED column and 0–300 mmHg for the numeric display.
The reported resolution is 2 mmHg for the LED column and 1 mmHg for the numeric display.
The product is supplied with a Velcro cuff. A published specification lists the cuff dimensions as approximately 14.5 × 51 cm.
Yes. Available product information identifies clinics and hospitals among the intended environments for this professional BP apparatus.
No memory function is listed for this model in the available product specifications.
The current Microsidd description and other available model information list a 1-year warranty.
The Diamond LED 041 BPDG 041 has a dedicated listing on Microsidd.com within its healthcare and blood-pressure-monitoring range. The current Microsidd page identifies the exact model and SKU and lists the product as ready to ship at the time it was checked.
Buy Diamond LED 041 BP Apparatus from Microsidd.com
| Buying Factor | Microsidd.com | Typical General Marketplace |
|---|---|---|
| Exact Diamond Model | ✅ BPDG 041 / LED 041 | ⚠️ Seller/listing dependent |
| Dedicated Product Page | ✅ Yes | ⚠️ Seller dependent |
| Healthcare-Focused Product Range | ✅ Yes | ❌ Usually general marketplace |
| BP Apparatus Range | ✅ Multiple models | ✅ Usually |
| Professional Healthcare Products | ✅ Yes | ⚠️ Varies |
| Detailed Technical Information | ✅ Can be clearly maintained | ⚠️ Listing dependent |
| Product Assistance | ✅ Direct store support | ⚠️ Seller dependent |
| GST Invoice | ✅ Available as applicable | ⚠️ Seller dependent |
| Pan-India Ordering | ✅ Available | ✅ Generally |
| Seller Relationship | ✅ Direct Microsidd purchase | ⚠️ Marketplace seller varies |
Product Name: Diamond LED 041 Blood Pressure Apparatus
Brand: Diamond
Model: BPDG 041
Category: Blood Pressure Apparatus
Type: Manual / Auscultatory BP Monitor
Pressure Display: Electronic LED Column + Numeric Display
Measurement Method: Auscultation with Stethoscope
Mercury: Mercury-Free
Inflation: Manual Rubber Bulb
Deflation: Manual Control Valve
Cuff: Velcro Cuff
LED Range: 0–280 mmHg
Numeric Display Range: 0–300 mmHg
LED Resolution: 2 mmHg
Numeric Resolution: 1 mmHg
Typical Application: Professional / Clinical BP Measurement
Warranty: 1 Year
Seller: Microsidd.com
Market: India
The Diamond LED 041 (BPDG 041) is a mercury-free manual blood pressure apparatus from Diamond. It uses an electronic LED pressure column and numeric display while retaining the traditional auscultatory measurement technique. The cuff is manually inflated with a rubber bulb, pressure is manually released through a control valve, and a stethoscope is used to determine systolic and diastolic blood pressure. Published specifications list an LED range of 0–280 mmHg and numeric display range of 0–300 mmHg.
| Specification name | Specification Value |
|---|---|
| Body area | Arms |
| Color pattern | Blue, Black |
| Display technology | LED |
| Translation missing: en.metafields.shopify.medical-device-certification | ISI |
| Power source | Manual |
| Tracking metrics | Blood pressure |
