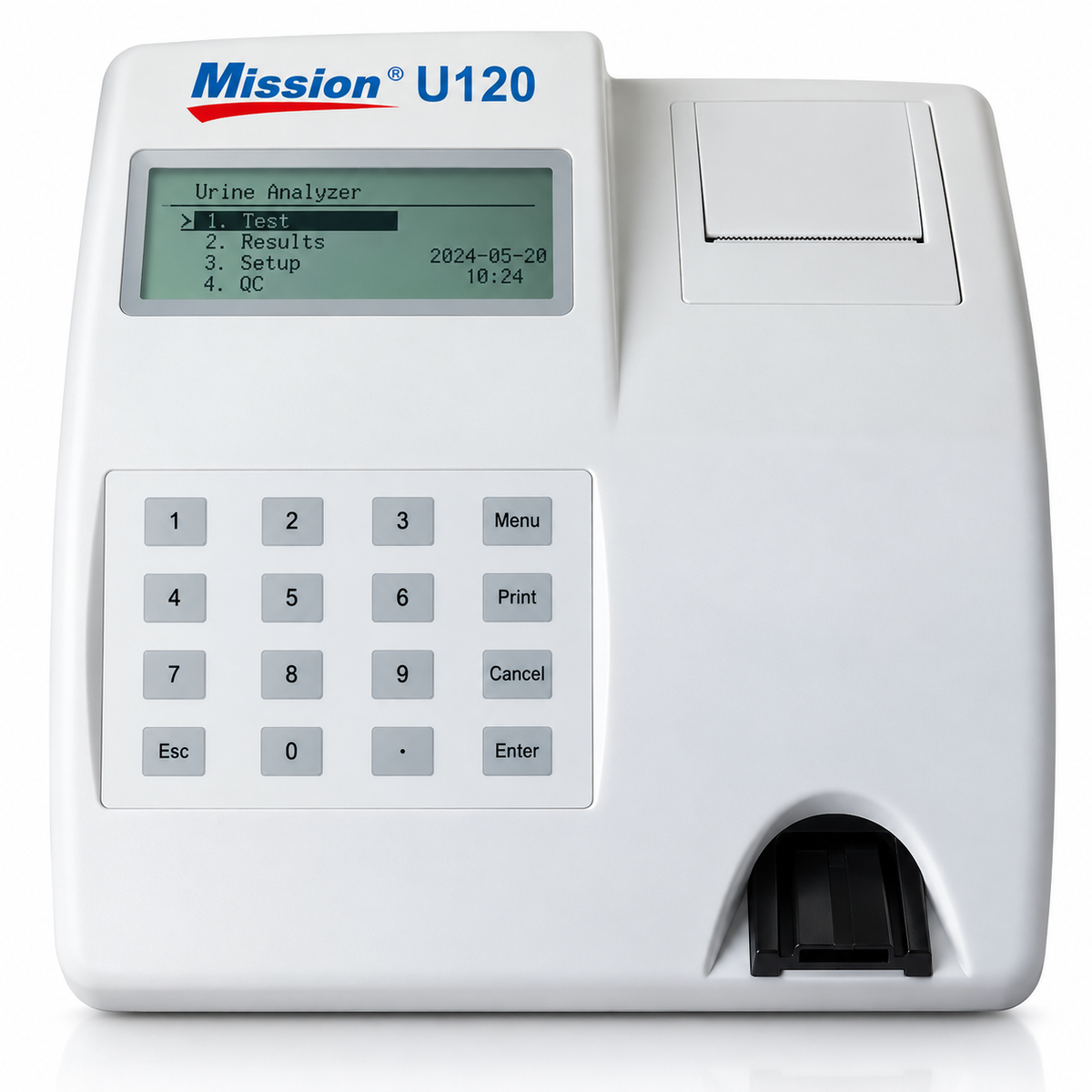

Mission U120 Urine Analyzer is a professional urine chemistry analyzer designed for standardized reading of compatible Mission urinalysis reagent strips in laboratories, clinics and point-of-care testing environments.
The analyzer uses reflectance photometry with photosensitive diode detection to evaluate reagent-strip colour reactions and convert them into standardized urine chemistry results.
With continuous testing capability of up to 120 tests per hour, the U120 is designed for laboratories and healthcare facilities that require faster, more consistent urinalysis processing than manual visual strip interpretation alone.
| Specification | Mission U120 |
|---|---|
| Analyzer Type | Urine Chemistry Analyzer |
| Methodology | Reflectance Photometry |
| Detection | Photosensitive Diode |
| Single-Test Throughput | Up to 60 tests/hour |
| Continuous Throughput | Up to 120 tests/hour |

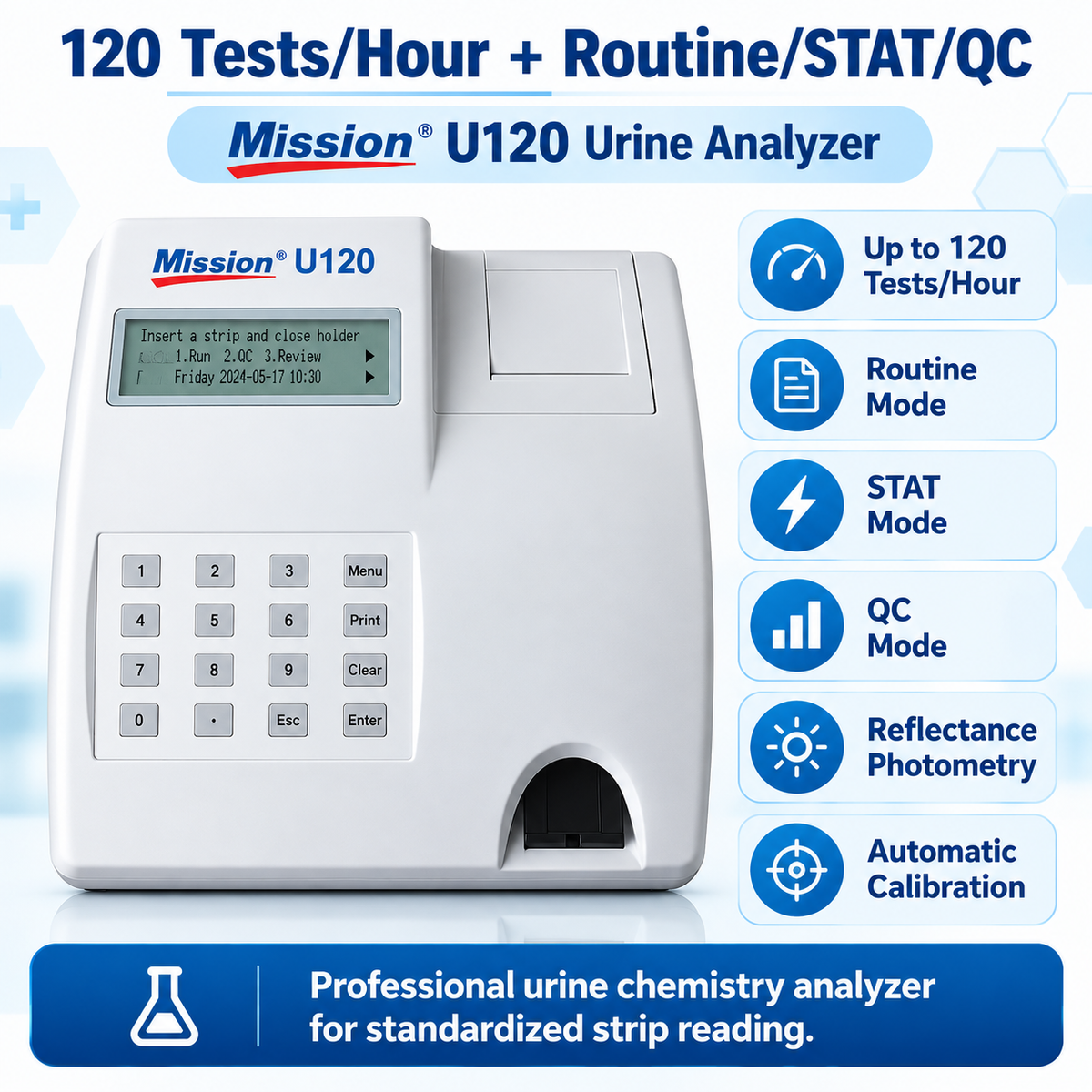

| Test Modes | Routine, STAT and QC |
| Memory | Last 2,000 results |
| Strip Incubation Time | 1 minute |
| LED Wavelengths | 525 nm and 635 nm |
| Supported Strip Configurations | 4, 5, 10 and 11 parameters |
| Calibration | Automatic |
| Printer | Internal Thermal Printer |
| Connectivity | RS232C, USB and parallel printer port |
| Power | 100–240 VAC, 50–60 Hz |
| Dimensions | Approx. 27.2 × 26.9 × 14.6 cm |
| Weight | Approx. 2.6 kg |

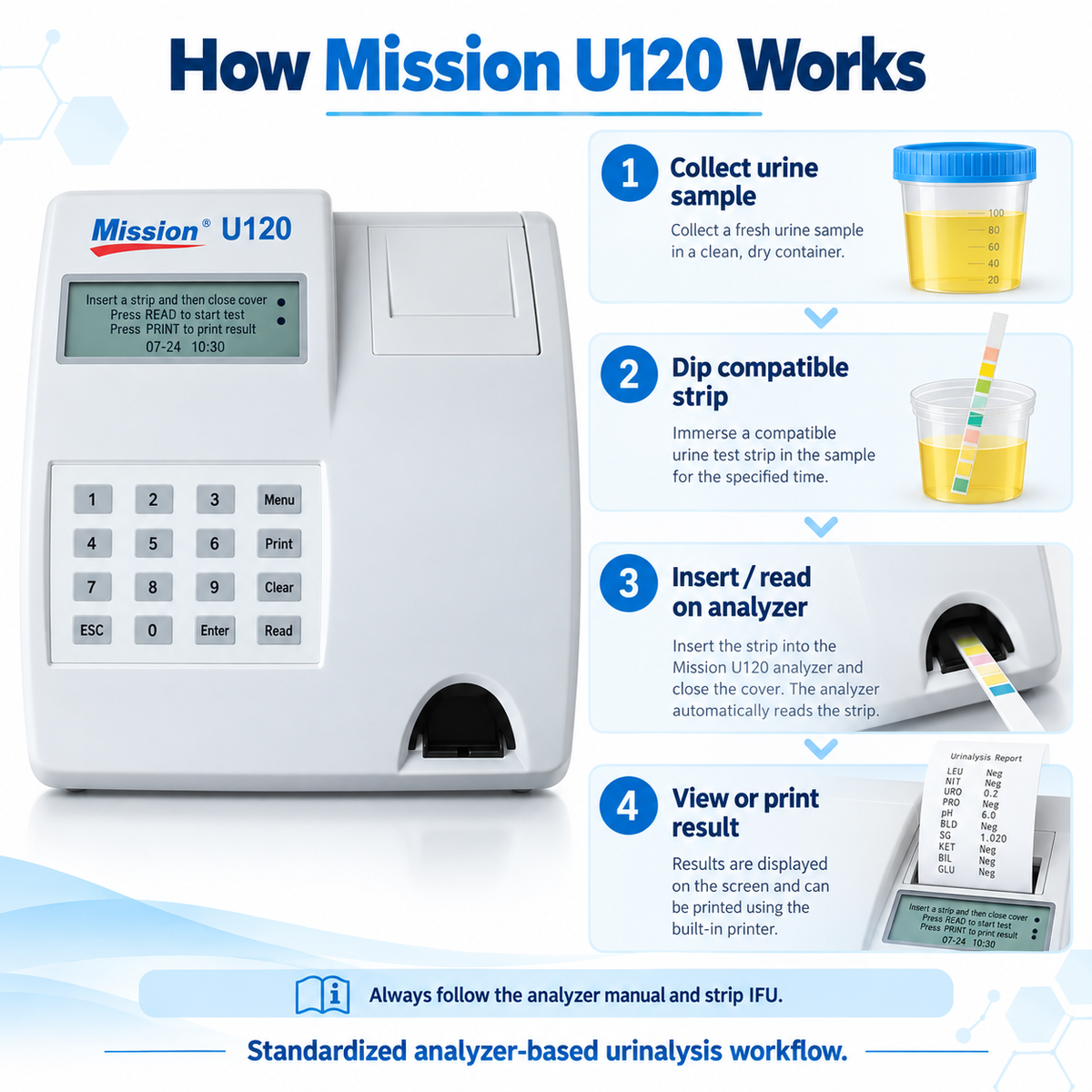

The U120 reads compatible urine reagent strips after the strip has reacted with a urine sample.
Instead of relying entirely on visual comparison of reagent-pad colours, the analyzer measures reflected light from each reagent area and calculates the corresponding result according to the programmed strip configuration.
This can help improve:
The Mission U120 is designed for use with compatible Mission Expert Urinalysis Reagent Strips and supports multiple programmed strip configurations.

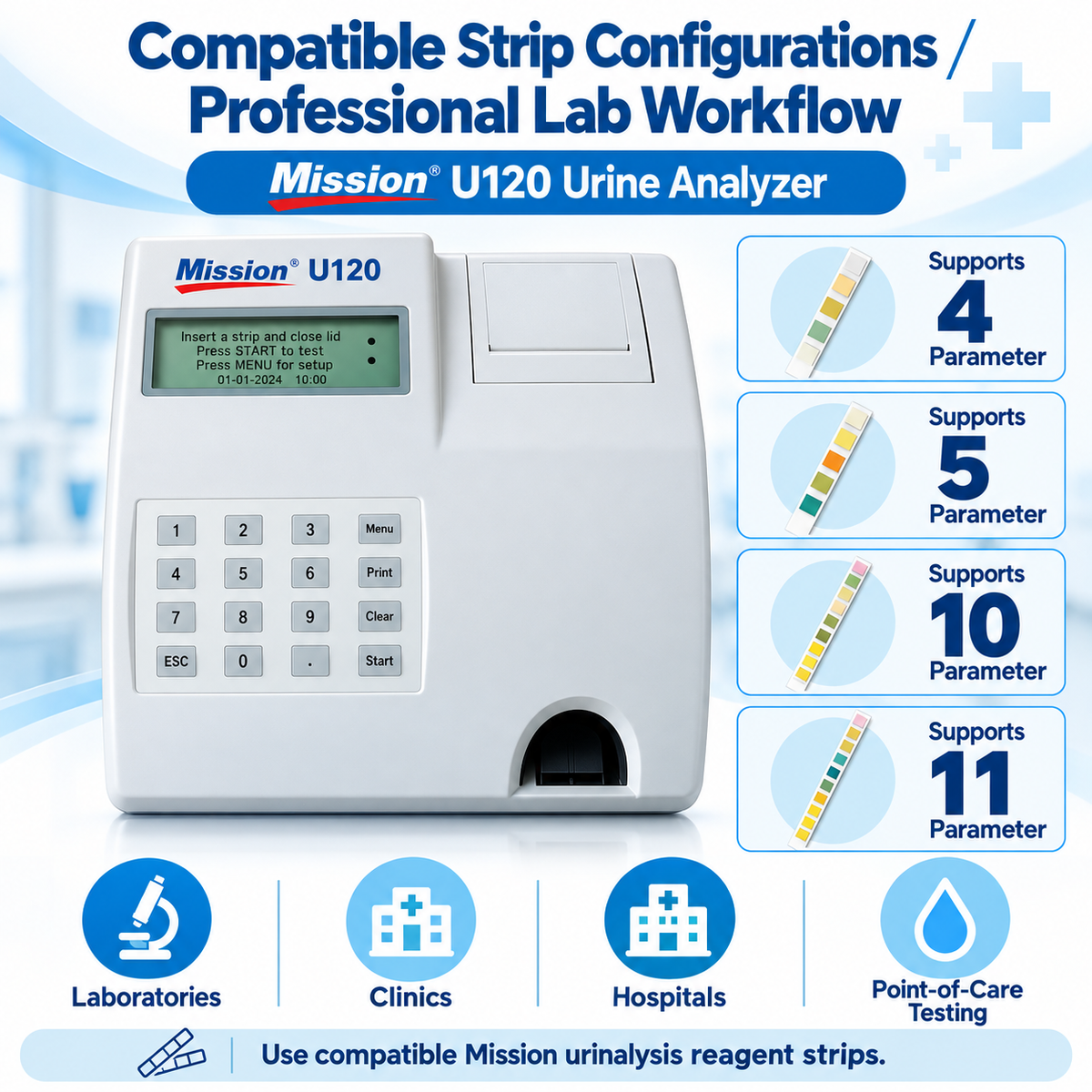

The analyzer supports 4-, 5-, 10- and 11-parameter strip combinations according to the manufacturer specification.
Important: Do not assume that every Mission urine strip can be used with the U120 simply because it is a Mission-branded product.
Exact strip compatibility should be confirmed using the analyzer manual, strip model and programmed configuration before purchase or routine use.
A visual urine strip such as Mission 10U can be interpreted manually using its colour chart. The U120 provides instrument-based reading for compatible Mission strip configurations.
| Visual Strip Reading | Mission U120 Analyzer |
|---|---|
| Operator compares colours manually | Instrument measures reflectance |
| Suitable for lower testing volumes | Better suited to repeated professional workflows |
| Results manually recorded | Results can be stored and printed |
| Greater operator dependence | Improves standardization of strip reading |
| No analyzer required | Requires compatible analyzer strips |
The Mission U120 may be suitable for:
Designed for regular day-to-day urine testing workflows.
Allows urgent samples to be handled within the testing workflow when rapid processing is required.
Supports quality-control testing and documentation as part of laboratory quality procedures.
The U120 includes automatic calibration, helping simplify routine operation and maintain consistent optical performance.
Calibration and quality-control procedures should still be performed according to the analyzer manual and laboratory SOPs.
The analyzer stores the most recent 2,000 test results, allowing laboratories to retrieve previous records when required.
Data-management options include:

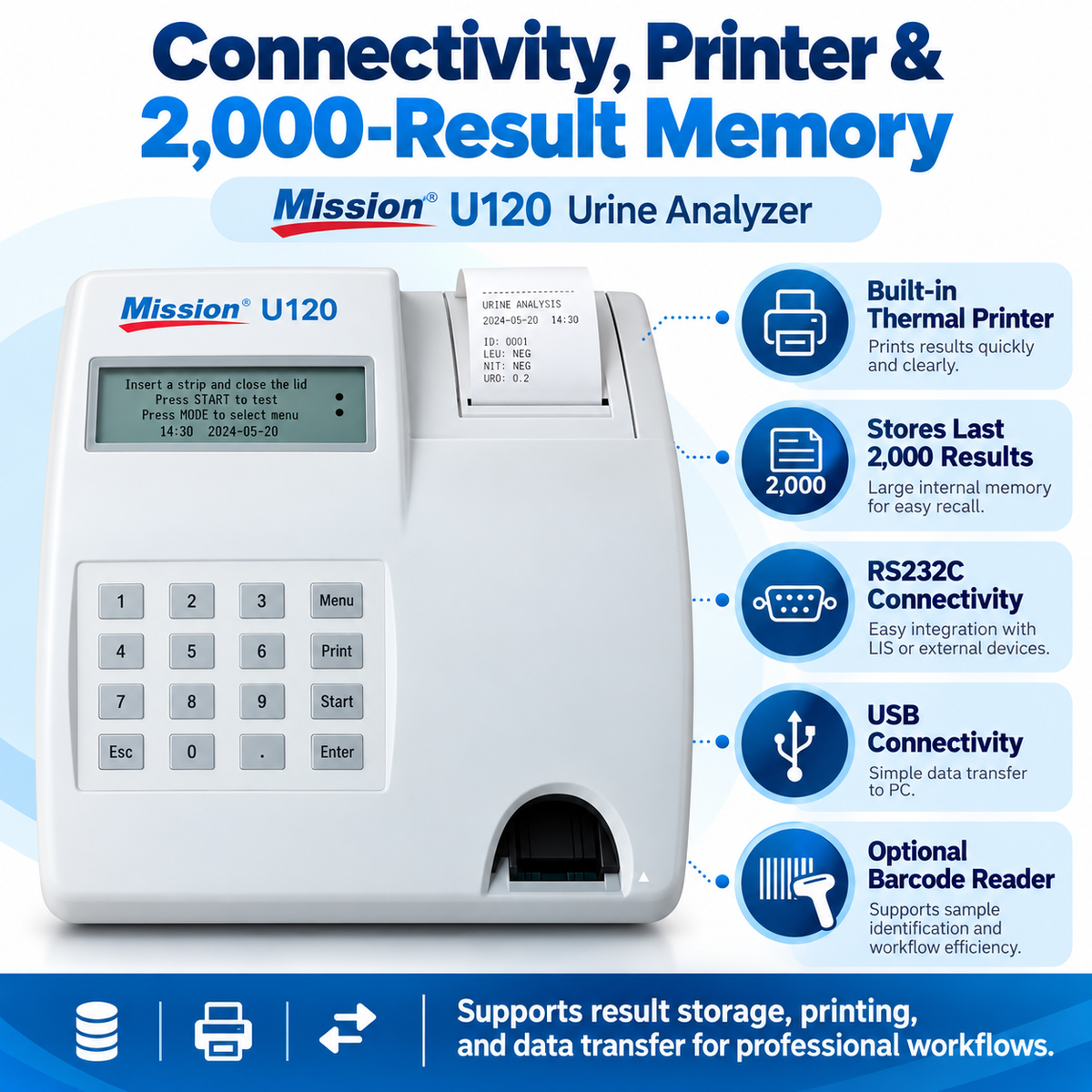

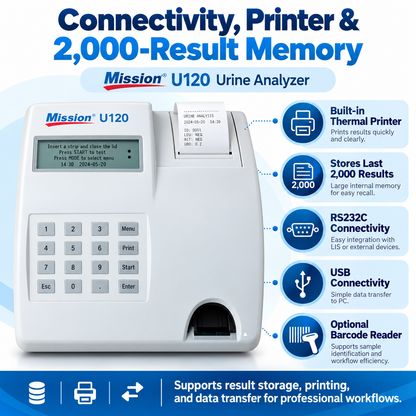

The Mission U120 includes an internal thermal printer for immediate result documentation.
Microsidd also supplies compatible urine-analyzer printer rolls.
View Urine Chemistry Analyzer Printer Rolls →
An optional barcode reader can be connected to support patient identification workflows.
The manufacturer lists support for commonly used barcode formats including Code 128, Code 39, Codabar, Interleaved 2 of 5, UPC and EAN formats.
The exact workflow should always follow the manufacturer's operating manual and laboratory SOP.
Visual urine-strip interpretation can be appropriate for low-volume testing, but colour assessment may vary between operators and under different lighting conditions.
A urine chemistry analyzer can improve consistency by using an optical reading system rather than relying solely on human colour comparison.
This is particularly useful where:
Microsidd also carries the Mission U500 urine analyzer for laboratories requiring a different urinalysis workflow or capacity.
The correct analyzer should be selected based on testing volume, automation requirements, strip compatibility and data-management needs.
View Mission U500 Urine Analyzer →
The Mission U120 forms part of Microsidd's broader Urine Chemistry range including:
Explore the Complete Urine Chemistry Collection →
The U120 can process up to 120 tests per hour in continuous mode and up to approximately 60 tests per hour in single-test mode.
It uses reflectance photometry with photosensitive diode detection.
The analyzer can store the last 2,000 results.
Yes. It includes an internal thermal printer for result printing.
Yes. The analyzer includes RS232C and USB connectivity for data transfer. Laboratory integration depends on the particular software and LIS setup.
Yes. The analyzer supports an optional barcode reader for patient ID entry.
The U120 is designed for compatible Mission Expert urinalysis reagent-strip configurations. Exact compatibility should be confirmed before purchasing strips.
Not necessarily. Mission branding alone does not guarantee analyzer compatibility. Use only the strip configurations specified for the U120.
The analyzer provides automatic calibration. Quality control should still be performed according to laboratory procedures and manufacturer instructions.
The U120 is primarily a professional urinalysis analyzer intended for laboratory, clinical and point-of-care workflows rather than routine consumer home testing.
The Mission U120 is a professional diagnostic instrument. It should be operated by appropriately trained personnel in accordance with the manufacturer's user manual, compatible reagent-strip instructions and applicable laboratory procedures.
Urinalysis results should be interpreted together with patient history, symptoms and other laboratory or clinical findings where appropriate.
Please verify:
For compatibility assistance, contact Microsidd before ordering if you are unsure which Mission strips are required for your analyzer.
| Specification name | Specification Value |
|---|---|
| Color pattern | White, Blue |
